Chapter 05 - Clearing the screen

In this chapter we will introduce new concepts that are required to render a scene to the screen. We will finally combine all these new concepts with the elements described in previous chapters to clear the screen. Therefore, it is crucial to understand all of them and how are they related in order to be able to progress in the book.

You can find the complete source code for this chapter here.

Command Buffers

When we talked about queues we already mentioned that in Vulkan, work is submitted by recording commands (stored in a command buffer), and submitting them to a queue. It is time now to implement the support for these elements. Command buffers need to be instantiated through a command pool. Therefore, let's encapsulate Command pool creation in a struct named VkCmdPool. Its definition is quite simple (it's defined in the file src/eng/vkVkCmd.zig remember to include it in the mod.zig file: pub const cmd = @import("vkCmd.zig");):

const std = @import("std");
const vulkan = @import("vulkan");
const vk = @import("mod.zig");

pub const VkCmdPool = struct {
    commandPool: vulkan.CommandPool,

    pub fn create(vkCtx: *const vk.ctx.VkCtx, queueFamilyIndex: u32, resetSupport: bool) !VkCmdPool {
        const createInfo: vulkan.CommandPoolCreateInfo = .{ .queue_family_index = queueFamilyIndex, .flags = .{ .reset_command_buffer_bit = resetSupport } };
        const commandPool = try vkCtx.vkDevice.deviceProxy.createCommandPool(&createInfo, null);
        return .{ .commandPool = commandPool };
    }

    pub fn cleanup(self: *const VkCmdPool, vkCtx: *const vk.ctx.VkCtx) void {
        vkCtx.vkDevice.deviceProxy.destroyCommandPool(self.commandPool, null);
    }

    pub fn reset(self: *const VkCmdPool, vkCtx: *const vk.ctx.VkCtx) !void {
        try vkCtx.vkDevice.deviceProxy.resetCommandPool(self.commandPool, .{});
    }
};

Creating a command pool is pretty straightforward, we just set up an initialization structure, named CommandPoolCreateInfo which has the following main parameter:

• queueFamilyIndex: Selects the queue family index where the commands created in this pool can be submitted to.
• flags: It allows to specify the behavior of the command pool. Basically, we have two options, we can get command buffers from the pool and return them whenever we have used them (we have submitted them to a queue), or we can reuse them between several submits. In this later case, you need to reset them. In order to do so, you need to explicitly create the command pool to support this behavior, by setting the flags parameter with the VK_COMMAND_POOL_CREATE_RESET_COMMAND_BUFFER_BIT value (reset_command_buffer_bit flag). This will allow commands to be reset individually.

The rest of the functions of the struct are, as usual, a cleanup function to release resources. Now that are able to create command pools, let's review the struct that will allow us to instantiate command buffers, which as you can imagine it's named VkCmdBuff (defined in the same file as VkCmdPool). It starts like this:

pub const VkCmdBuff = struct {
    cmdBuffProxy: vulkan.CommandBufferProxy,
    oneTime: bool,

    pub fn create(vkCtx: *const vk.ctx.VkCtx, vkCmdPool: *vk.cmd.VkCmdPool, oneTime: bool) !VkCmdBuff {
        const allocateInfo: vulkan.CommandBufferAllocateInfo = .{
            .command_buffer_count = 1,
            .command_pool = vkCmdPool.commandPool,
            .level = vulkan.CommandBufferLevel.primary,
        };
        var cmds: [1]vulkan.CommandBuffer = undefined;
        try vkCtx.vkDevice.deviceProxy.allocateCommandBuffers(&allocateInfo, &cmds);
        const cmdBuffProxy = vulkan.CommandBufferProxy.init(cmds[0], vkCtx.vkDevice.deviceProxy.wrapper);

        return .{ .cmdBuffProxy = cmdBuffProxy, .oneTime = oneTime };
    }
    ...
};

The create functions receives, as it first parameter, the Vulkan Context, since we need to access the device. The second parameter is the command pool where this command buffer will be allocated to. The third and last parameter is a boolean that indicates if the command buffer recordings will be submitted just once or if they can be submitted multiple times (we will see later on what this implies). We need to fill a structure named CommandBufferAllocateInfo. The parameters are:

• command_pool: Handle to the command pool which will be used to allocate the command buffer.
• level: Indicates the level of the command buffer (primary or secondary).
• command_buffer_count: The number of command buffers to allocate.

To finalize the create function, once that structure is being set, we allocate the command buffer by creating a new CommandBufferProxy instance. The next function of the VkCmdBuff struct, named begin, should be invoked when we want to start recording for that command buffer:

pub const VkCmdBuff = struct {
    ...
    pub fn begin(self: *const VkCmdBuff, vkCtx: *const vk.ctx.VkCtx) !void {
        const beginInfo: vulkan.CommandBufferBeginInfo = .{ .flags = .{ .one_time_submit_bit = self.oneTime } };
        try vkCtx.vkDevice.deviceProxy.beginCommandBuffer(self.cmdBuffProxy.handle, &beginInfo);
    }
    ...
};

To start recording we need to create a CommandBufferBeginInfo structure and invoke the beginCommandBuffer function. If we are submitting a short lived command, we can signal that using the flag one_time_submit_bit (VK_COMMAND_BUFFER_USAGE_ONE_TIME_SUBMIT_BIT). In this case, the driver may not try to optimize that command buffer since it will only be used one time.

The next functions are the usual cleanup for releasing resources and end to finalize the recording:

pub const VkCmdBuff = struct {
    ...
    pub fn cleanup(self: *const VkCmdBuff, vkCtx: *const vk.ctx.VkCtx, vkCmdPool: *vk.cmd.VkCmdPool) void {
        const cmds = [_]vulkan.CommandBuffer{self.cmdBuffProxy.handle};
        vkCtx.vkDevice.deviceProxy.freeCommandBuffers(vkCmdPool.commandPool, cmds.len, &cmds);
    }
    ...
    pub fn end(self: *const VkCmdBuff, vkCtx: *const vk.ctx.VkCtx) !void {
        try vkCtx.vkDevice.deviceProxy.endCommandBuffer(self.cmdBuffProxy.handle);
    }
    ...
}

The VkCmdBuff struct is now almost complete, there is still one function missing which basically submits it to a queue and waits it to be processed. But, prior to showing that function we need to introduce new concepts.

Synchronization

Prior to progress in rendering something on the screen, we need to address a fundamental topic in Vulkan: synchronization. In Vulkan we will be in charge of properly control the synchronization of the resources. This imposes certain complexity but allows us to have a full control about how operations will be done. In this section we will address two main mechanisms involved in Vulkan synchronization: semaphores and fences. There are some other elements such as barriers or events, we will explain them once we first use them.

Fences are the mechanisms used in Vulkan to synchronize operations between the GPU and the CPU (our application). Semaphores are used to synchronize operations inside the GPU (GPU to GPU synchronization), and are frequently used to synchronize queue submissions. These elements are used to block the execution until a signal is performed. Once a signal is received execution is resumed. It is important to note, that signaling is always done in the GPU side. In the case of fences, our application can block (waiting in the CPU) until the GPU signals that execution can go on, but we cannot trigger the signaling from the CPU. In the case of semaphores, since they are internal to the GPU, waiting can only happen in the GPU.

Before using these elements, we will define some structs to manage them. We will first start with the VkSemaphore struct (defined in the file vkSync.zig. Remember to include this file in the mod.zig file: pub const sync = @import("vkSync.zig");):

const std = @import("std");
const vulkan = @import("vulkan");
const vk = @import("mod.zig");

...
pub const VkSemaphore = struct {
    semaphore: vulkan.Semaphore,

    pub fn create(vkCtx: *const vk.ctx.VkCtx) !VkSemaphore {
        const semaphore = try vkCtx.*.vkDevice.deviceProxy.createSemaphore(&.{}, null);
        return .{ .semaphore = semaphore };
    }

    pub fn cleanup(self: *const VkSemaphore, vkCtx: *const vk.ctx.VkCtx) void {
        vkCtx.*.vkDevice.deviceProxy.destroySemaphore(self.semaphore, null);
    }
};

In this case we are modeling what is called a binary semaphore, which can be in two states: signaled and un-signaled. When you create a semaphore is in an un-signaled state. When we submit command we can specify a semaphore to be signaled when the commands complete. If later on, we record some other commands or perform some operation that require those previous commands to be completed, we use the same semaphore to wait. The cycle is like this, the semaphore in the first step is un-signaled, when the operations are completed get signaled and then, commands that are waiting can continue (we say that these second step activities are waiting for the semaphore to be signaled). Creating a semaphore is easy, just define call the createSemaphore function. We complete the code with the cleanup function to free the resources.

Now it's turn for the VkFence struct (defined in the same file):

pub const VkFence = struct {
    fence: vulkan.Fence,

    pub fn create(vkCtx: *const vk.ctx.VkCtx) !VkFence {
        const fence = try vkCtx.*.vkDevice.deviceProxy.createFence(&.{ .flags = .{ .signaled_bit = true } }, null);
        return .{ .fence = fence };
    }

    pub fn cleanup(self: *const VkFence, vkCtx: *const vk.ctx.VkCtx) void {
        vkCtx.*.vkDevice.deviceProxy.destroyFence(self.fence, null);
    }

    pub fn reset(self: *const VkFence, vkCtx: *const vk.ctx.VkCtx) !void {
        try vkCtx.*.vkDevice.deviceProxy.resetFences(1, @ptrCast(&self.fence));
    }

    pub fn wait(self: *const VkFence, vkCtx: *const vk.ctx.VkCtx) !void {
        _ = try vkCtx.*.vkDevice.deviceProxy.waitForFences(1, @ptrCast(&self.fence), vulkan.Bool32.true, std.math.maxInt(u64));
    }
};

As in the VkSemaphore struct, the VkFence struct is also very simple. We also need to call the createFence with some flags. In this case, we will use a flag to state that the fence should be signaled when created. Besides the cleaning function and the one for getting the handle we have one function called wait which waits for the fence to be signaled (waits in the CPU the signal raised by the GPU). We have another one named reset which resets the fence to un-signaled state by calling the resetFences function.

With all of these synchronization elements we can go back to the VkQueue struct and add a function to submit command buffers named submit:

pub const VkQueue = struct {
    ...
    pub fn submit(self: *const VkQueue, vkCtx: *const vk.ctx.VkCtx, cmdBufferSubmitInfo: []const vulkan.CommandBufferSubmitInfo, semSignalInfo: []const vulkan.SemaphoreSubmitInfo, semWaitInfo: []const vulkan.SemaphoreSubmitInfo, vkFence: vk.sync.VkFence) !void {
        try vkFence.reset(vkCtx);
        const si = vulkan.SubmitInfo2{
            .command_buffer_info_count = @as(u32, @intCast(cmdBufferSubmitInfo.len)),
            .p_command_buffer_infos = cmdBufferSubmitInfo.ptr,
            .signal_semaphore_info_count = @as(u32, @intCast(semSignalInfo.len)),
            .p_signal_semaphore_infos = semSignalInfo.ptr,
            .wait_semaphore_info_count = @as(u32, @intCast(semWaitInfo.len)),
            .p_wait_semaphore_infos = semWaitInfo.ptr,
        };
        try vkCtx.vkDevice.deviceProxy.queueSubmit2(
            self.handle,
            1,
            @ptrCast(&si),
            vkFence.fence,
        );
    }
    ...
};

This function can receive a list of command buffer handles (we can submit more than one at a time) and several synchronization elements. In order to submit a list of command buffers to a queue we need to setup a SubmitInfo2 structure. The attributes of this structure are:

• p_command_buffer_infos: The list of the command buffers to submit.
• command_buffer_info_count: The number of the commands to be submitted in that list.
• p_signal_semaphore_infos: It holds a list of semaphores that will be signaled when all the commands have finished. Remember that we use semaphores for GPU-GPU synchronization.
• signal_semaphore_info_count: The number of semaphores to be signaled.
• p_wait_semaphore_infos: It holds a list of semaphores that we will use to wait before the commands get executed. The execution of the commands will block until the semaphores are signaled.
• p_wait_semaphore_infos: The number of semaphores to be used for waiting.

When submitting the command buffers we can also set a handle to a fence. We will use this as a blocking mechanism in our application to prevent re-submitting commands that are still in use.

Now that we have introduced semaphores, fences, and queue submission it is time to show the pending function in the VkCmdBuff which is called submitAndWait:

pub const VkCmdBuff = struct {
    ...
    pub fn submitAndWait(self: *const VkCmdBuff, vkCtx: *const vk.ctx.VkCtx, vkQueue: vk.queue.VkQueue) !void {
        const vkFence = try vk.sync.VkFence.create(vkCtx);
        defer vkFence.cleanup(vkCtx);

        const cmdBufferSubmitInfo = [_]vulkan.CommandBufferSubmitInfo{.{
            .device_mask = 0,
            .command_buffer = self.cmdBuffProxy.handle,
        }};

        const emptySemphs = [_]vulkan.SemaphoreSubmitInfo{};

        try vkQueue.submit(vkCtx, &cmdBufferSubmitInfo, &emptySemphs, &emptySemphs, vkFence);
        try vkFence.wait(vkCtx);
    }
    ...
};

The function is quite simple. We start by creating a VkFence instance, which will allows to block CPU execution until all the commands submitted have been processed. We set the fence to be cleaned up when it goes out of scope. We then just wrap the command buffer handle into a CommandBufferSubmitInfo structure and use the queue, received as a parameter, to submit it. Then we just wait for the commands to finish by calling wait. This function will be used in future chapters to wait for the loading of assets (3D models, textures, ...) into the GPU.

Render loop

Prior to progress on how we render graphics, we will analyze first how what we would need to do that. The first thing that comes to the mind may be having a command buffer and a command pool, of course having a queue to submit the commands and we will need something to do with the image views of the VkSwapChain. So, let's just create one instance of each and that's it, right? Well, it turns out that is not so easy. We need to make sure that the image we are rendering into is not in use. Ok, so let's then use a fence and a semaphore to prevent that, and that's all, right? Again, it is not so easy. Remember when we talked about the VkSwapChain struct? We created several image views. We want to be able to perform operations in the CPU while the GPU is working, this is why we tried to use triple buffering. So we need to have several resources while processing each frame. How many of them? At first, you may think that you need as many as image views have the VkSwapChain image views. The reality, however, is that you do not need as many, with just two is enough. The reason is that we do not want the CPU to wait for the GPU to prevent having latency. We will refer to this number as frames in flight, which shall not be confused with total swap chain image views. In fact, we will create a new constant in the common.zig file for this:

...
pub const FRAMES_IN_FLIGHT = 2;
...

There is an excellent resource here which provides additional information.

So then just create as many semaphores and fences as frames in flight an that's all, right? Again, it is not so easy!. We need to take care with swap chain image presentation. We will use a semaphore when submitting the work to a queue to be signaled after all the work has been done. We will use an array of semaphores for that, called semsRenderComplete. When presenting the acquired swap chain image we will use the proper index semsRenderComplete[i] when calling the queuePresentKHR function so presentation cannot start until render work has been finished. The issue here is that this will be an asynchronous call that can be processed later on. Imagine that we created as the semsRenderComplete array is size to contain as many instances as flights in frame, let's say 2 and we will have 3 swap chain images.

• In Frame #0:
  • We acquire the first swap chain image (with an index equal to 0).
  • We submit the work using semsRenderComplete[0].
  • We present the swap chain image (that is, call the queuePresentKHR function using semsRenderComplete[0] semaphore).
• In Frame #1:
  • We acquire the next swap chain image (with an index equal to 1).
  • We submit the work using semsRenderComplete[1].
  • We present the swap chain image (that is, call the queuePresentKHR function using semsRenderComplete[1] semaphore).
  • Everything is ok up to this point.
• In Frame #2:
  • We acquire the next swap chain image (with an index equal to 2).
  • We have just 2 instances of semsRenderComplete, so we need to use semsRenderComplete[0].
  • The issue here is that presentation for Frame #0 may not have finished, and thus semsRenderComplete[0] may still be in use. We may have a synchronization issue here.

But, shouldn't fences help us prevent us from this issue? The answer is no, fences will be used when submitting work to a queue. Therefore, if we wait for a fence, we will be sure that previous work associated to the same frame in flight index will have finished. The issue is with presentation, when presenting the swap chain image we just pass a semaphore to wait to be signaled when the render work is finished, but we cannot signal when the presentation will be finished. Therefore, fence wait does not know anything about the presentation state, The solution for this is to have as many render complete semaphores as swap chain images. The rest of synchronization elements and per-frame elements just need to be sized to the maximum number of frames in flight, because they are concerned to just render activities, presentation is not involved at all.

Let's go now to the Render struct and see the new attributes that we will need (showing the changes in the create and the cleanup functions):

...
const vulkan = @import("vulkan");

pub const Render = struct {
    vkCtx: vk.ctx.VkCtx,
    cmdPools: []vk.cmd.VkCmdPool,
    cmdBuffs: []vk.cmd.VkCmdBuff,
    currentFrame: u8,
    fences: []vk.sync.VkFence,
    queueGraphics: vk.queue.VkQueue,
    queuePresent: vk.queue.VkQueue,
    renderScn: eng.rscn.RenderScn,
    semsPresComplete: []vk.sync.VkSemaphore,
    semsRenderComplete: []vk.sync.VkSemaphore,

    pub fn cleanup(self: *Render, allocator: std.mem.Allocator) !void {
        try self.vkCtx.vkDevice.wait();

        self.renderScn.cleanup(allocator, &self.vkCtx);

        for (self.cmdPools) |cmdPool| {
            cmdPool.cleanup(&self.vkCtx);
        }
        allocator.free(self.cmdBuffs);

        defer allocator.free(self.cmdPools);
        for (self.fences) |fence| {
            fence.cleanup(&self.vkCtx);
        }
        defer allocator.free(self.fences);

        self.cleanupSemphs(allocator);

        try self.vkCtx.cleanup(allocator);
    }

    fn cleanupSemphs(self: *Render, allocator: std.mem.Allocator) void {
        for (self.semsRenderComplete) |sem| {
            sem.cleanup(&self.vkCtx);
        }
        defer allocator.free(self.semsRenderComplete);

        for (self.semsPresComplete) |sem| {
            sem.cleanup(&self.vkCtx);
        }
        defer allocator.free(self.semsPresComplete);
    }

    pub fn create(allocator: std.mem.Allocator, constants: com.common.Constants, window: sdl3.video.Window) !Render {
        const vkCtx = try vk.ctx.VkCtx.create(allocator, constants, window);

        const fences = try allocator.alloc(vk.sync.VkFence, com.common.FRAMES_IN_FLIGHT);
        for (fences) |*fence| {
            fence.* = try vk.sync.VkFence.create(&vkCtx);
        }

        const semsRenderComplete = try allocator.alloc(vk.sync.VkSemaphore, vkCtx.vkSwapChain.imageViews.len);
        for (semsRenderComplete) |*sem| {
            sem.* = try vk.sync.VkSemaphore.create(&vkCtx);
        }

        const semsPresComplete = try allocator.alloc(vk.sync.VkSemaphore, com.common.FRAMES_IN_FLIGHT);
        for (semsPresComplete) |*sem| {
            sem.* = try vk.sync.VkSemaphore.create(&vkCtx);
        }

        const cmdPools = try allocator.alloc(vk.cmd.VkCmdPool, com.common.FRAMES_IN_FLIGHT);
        for (cmdPools) |*cmdPool| {
            cmdPool.* = try vk.cmd.VkCmdPool.create(&vkCtx, vkCtx.vkPhysDevice.queuesInfo.graphics_family, false);
        }

        const cmdBuffs = try allocator.alloc(vk.cmd.VkCmdBuff, com.common.FRAMES_IN_FLIGHT);
        for (cmdBuffs, 0..) |*cmdBuff, i| {
            cmdBuff.* = try vk.cmd.VkCmdBuff.create(&vkCtx, &cmdPools[i], true);
        }

        const queueGraphics = vk.queue.VkQueue.create(&vkCtx, vkCtx.vkPhysDevice.queuesInfo.graphics_family);
        const queuePresent = vk.queue.VkQueue.create(&vkCtx, vkCtx.vkPhysDevice.queuesInfo.present_family);

        const renderScn = try eng.rscn.RenderScn.create(allocator, &vkCtx);

        return .{
            .vkCtx = vkCtx,
            .cmdPools = cmdPools,
            .cmdBuffs = cmdBuffs,
            .currentFrame = 0,
            .fences = fences,
            .queueGraphics = queueGraphics,
            .queuePresent = queuePresent,
            .renderScn = renderScn,
            .semsPresComplete = semsPresComplete,
            .semsRenderComplete = semsRenderComplete,
        };
    }
    ...
};

We will need:

• An array of command pools, whose size will be equal to the maximum number of flights in flight.
• An array of command buffers, one per frame in flight where will be recording the commands for each of them.
• Synchronization instances, semaphores and fences, as well, as many as frames in flight with the exception of the semaphores that will be signaled when the render process is completed.
• One VkQueue instance for graphics since we can use them in multiple frames. Synchronization wil be controlled by fences and semaphores.
• One VkQueue instance for presentation.
• The attribute currentFrame will hold the current frame to be processed. It will be updated in each render loop.

Now let's focus on the render loop. The next figure shows the main steps.

The loop loop main steps are as follows:

• Wait for fence: In order to be able to access, from CPU, resources associated to current frame, we need to make sure that they are still not being used by the GPU. Remember that fences are the way to synchronize between GPU and CPU. When we will submit the work associated to current frame, we will pass the associated fence.
• Record commands A: Once we have passed the fence, we can start recording commands in the command buffer associated to the current frame. But Why having two sets of command "A" and "B" ? The reason for that is that we will have commands that do not depend on the specific swap chain image that we need to acquire ("A commands") and commands that will perform operations over a specific image view ("B commands"). We can start recording the first step prior to acquiring the swap chain image.
• Acquire image: We need to acquire the next swap chain image which will be used to render. In this chapter we will not have "A commands" yet however.
• Record commands B: Already explained.
• Submit commands: Just submit the commands to a graphical queue.
• Present Image.

Remember that, depending on your case, you can pre-record your commands once and use them in your render loop. However, if your scene is complex and the commands may change, it is acceptable to record them in the render loop (you can optimize this by reusing secondary command buffers or using several threads).

Let's see how the code of the render loop (and associated functions) looks like:

pub const Render = struct {
    ...
    pub fn render(self: *Render, engCtx: *eng.engine.EngCtx) !void {
        const fence = self.fences[self.currentFrame];
        try fence.wait(&self.vkCtx);

        const vkCmdPool = self.cmdPools[self.currentFrame];
        try vkCmdPool.reset(&self.vkCtx);

        const vkCmdBuff = self.cmdBuffs[self.currentFrame];
        try vkCmdBuff.begin(&self.vkCtx);

        const res = try self.vkCtx.vkSwapChain.acquire(self.vkCtx.vkDevice, self.semsPresComplete[self.currentFrame]);
        _ = engCtx;
        if (res == .recreate) {
            try vkCmdBuff.end(&self.vkCtx);
            return;
        }
        const imageIndex = res.ok;

        self.renderMainInit(vkCmdBuff, imageIndex);

        try self.renderScn.render(&self.vkCtx, vkCmdBuff, imageIndex);

        self.renderMainFinish(vkCmdBuff, imageIndex);

        try vkCmdBuff.end(&self.vkCtx);

        try self.submit(&vkCmdBuff, imageIndex);

        _ = self.vkCtx.vkSwapChain.present(self.vkCtx.vkDevice, self.queuePresent, self.semsRenderComplete[imageIndex], imageIndex);

        self.currentFrame = (self.currentFrame + 1) % com.common.FRAMES_IN_FLIGHT;
    }
    ...
};

The render loop performs the following actions:

• We first wait for the fence associated to the current frame.
• After that, we select the command pool and command buffer associated to current frame.
• We then reset the command pool and set the command buffer in recording mode. Remember that we will not be resetting the command buffers but the pool. After this step we could start recording "A commands".
• In our case, since we do not have "A commands" yet", we just acquire next swap chain image. We will see the implementation later on, but this function returns the index of the image acquired (it may not be just the next image index). The semsPresComplete array contains the semaphores used to synchronize image acquisition when the image is acquired, this semaphore will be signaled. Any operation depending on this image to be acquired, can use this semaphore as a blocking mechanism.
• If the acquire does return an error, this will mean that the operation failed. By now, we just finish recording and return. Later on we will recreate some assets when resizing is detected (which may be triggered also by SDL3). This is why we pass the EngCtx as a parameter. Later on, we will use it.
• Then we can record "B commands" which we will do by calling renderScn.render
• After that we can stop the recording and submit the work to the graphics queue.
• Finally, we just present the image and increase current frame in the range [0-VkUtils.MAX_IN_FLIGHT].

We will see later on the implementation of renderMainInit and renderMainFinish functions. Let's review the definition of the submit function:

pub const Render = struct {
    ...
    fn submit(self: *Render, vkCmdBuff: *const vk.cmd.VkCmdBuff, imageIndex: u32) !void {
        const vkFence = self.fences[self.currentFrame];

        const cmdBufferInfo = vulkan.CommandBufferSubmitInfo{
            .device_mask = 0,
            .command_buffer = vkCmdBuff.cmdBuffProxy.handle,
        };

        const semWaitInfo = vulkan.SemaphoreSubmitInfo{
            .device_index = 0,
            .value = 0,
            .stage_mask = .{ .color_attachment_output_bit = true },
            .semaphore = self.semsPresComplete[self.currentFrame].semaphore,
        };

        const semSignalInfo = vulkan.SemaphoreSubmitInfo{
            .device_index = 0,
            .value = 0,
            .stage_mask = .{ .bottom_of_pipe_bit = true },
            .semaphore = self.semsRenderComplete[imageIndex].semaphore,
        };

        try self.queueGraphics.submit(&self.vkCtx, &.{cmdBufferInfo}, &.{semSignalInfo}, &.{semWaitInfo}, vkFence);
    }
};

This function basically delegates in the submit function provided by VkQueue constructing all the required arguments. Let's concentrate on what semaphores we are using:

• semWaitInfo: It holds a list of semaphores that we will use to wait before the commands get executed. The execution of the commands will block until the semaphores are signaled. In this case, we are submitting the semaphore that was used for acquiring the swap chain image. This semaphore will be signaled when the image is effectively acquired, blocking the command execution until this happens. You will see that we are using a stage_mask with the color_attachment_output_bit flag set (VK_PIPELINE_STAGE_2_COLOR_ATTACHMENT_OUTPUT_BIT). You will understand this when we talk about pipelines, but this attribute allow us to fine control when we want to control this wait process. Commands, when submitted go through different stages (vertex output, fragment output, ...). In this case we need to wait when generating the output color, so we use the color_attachment_output_bit flag. Since we depend on swap chain image view, we want to make sure that the image has been acquired when we start outputting final colors.
• semWaitInfo: It holds a list of semaphores that will be signaled when all the commands have finished. Remember that we use semaphores for GPU-GPU synchronization. In this case, we are submitting the semaphore used in the swap chain presentation. This will provoke that the image cannot be presented until the commands have finished, that is, until render has finished. This is why we use the bottom_of_pipe_bit flag (VK_PIPELINE_STAGE_2_BOTTOM_OF_PIPE_BIT), all the commands need to have finalized their journey through the pipeline.

Please notice that we have different array sizes for the presentation complete semaphores and the render complete semaphores. The latter one (semsRenderComplete) will need to be accessed with the swap chain acquire image index, while the first one (semsPresComplete) will just need frame in flight index.

Finally, we use the current VkFence instance, this way we block the CPU from resetting command buffers that are still in use.

Let's start now by reviewing the missing functions in VkSwapChain struct. First function is acquire:

pub const VkSwapChain = struct {
    ...
    pub fn acquire(
        self: *const VkSwapChain,
        device: vk.dev.VkDevice,
        semaphore: vk.sync.VkSemaphore,
    ) !AcquireResult {
        const res = device.deviceProxy.acquireNextImageKHR(
            self.handle,
            std.math.maxInt(u64),
            semaphore.semaphore,
            .null_handle,
        );

        if (res) |ok| {
            return switch (ok.result) {
                .success, .suboptimal_khr => .{ .ok = ok.image_index },
                else => .recreate,
            };
        } else |err| {
            return switch (err) {
                error.OutOfDateKHR => .recreate,
                else => err,
            };
        }
    }
    ...
}

In order to acquire an image we need to call the function acquireNextImageKHR. The parameters for this function are:

• The handle to the Vulkan swap chain.
• A timeout to specify the maximum time to get blocked in this call (in nanoseconds). If the value is greater than 0 and we are not able to get an image in that time, we will get a VK_TIMEOUT error. In our case, we maxium value of a 64 bits integer to block indefinitely.
• A semaphore that will be signaled when the GPU is done with the acquired image. In our case, we use the presentation complete semaphore associated to current frame.
• A fence, which purpose is the same as in the semaphore attribute but using a VkFence. In our case we do not need this type of synchronization so we just pass a null.

If the function invocation succeeds it will- pImageIndex it will return contains the index of the image acquired. It is important to note that the driver may not return always the next image in the set of swap chain images. This is the reason the acquireNextImageKHR function returns the image index that has been acquired.

The function can return different error values, but we are interested in a specific value: OutOfDateKHR (VK_ERROR_OUT_OF_DATE_KHR). If this value is returned, it means that the window has been resized. If so, we need to handle that and recreate some resources.

Let's review the new function for image presentation named present:

pub const VkSwapChain = struct {
    ...
    pub fn present(
        self: *const VkSwapChain,
        device: vk.dev.VkDevice,
        queue: vk.queue.VkQueue,
        waitSem: vk.sync.VkSemaphore,
        imgIdx: u32,
    ) bool {
        const sems = [_]vulkan.Semaphore{waitSem.semaphore};
        const swaps = [_]vulkan.SwapchainKHR{self.handle};
        const indices = [_]u32{imgIdx};

        const info = vulkan.PresentInfoKHR{
            .wait_semaphore_count = 1,
            .p_wait_semaphores = &sems,
            .swapchain_count = 1,
            .p_swapchains = &swaps,
            .p_image_indices = &indices,
        };

        const result = device.deviceProxy.queuePresentKHR(queue.handle, &info) catch return false;

        return switch (result) {
            .success, .suboptimal_khr => true,
            else => false,
        };
    }
};

In order to present an image we need to call the queuePresentKHR function which receives two parameters:

• The queue to be used to enqueue the image to the presentation engine.
• A PresentInfoKHR structure with the information for presenting the image.

The PresentInfoKHR structure can be used to present more than one image. In this case we will be presenting just once at a time. The p_wait_semaphores will hold the list of semaphores that will be used to wait to present the images. Remember that this structure can refer to more than one image. In our case, is the semaphore that we use to signal that the render has been completed (we cannot present the image until render has finished). The rest of attributes refer to the swap chain Vulkan handle and the indices of the images to be presented (the p_image_indices parameter in the function).

Dynamic Rendering

In this book we will use Vulkan dynamic rendering vs the traditional approach based on render passes. Dynamic rendering provides a simpler API in which we just refer to the attachments (the images) that we want to render to vs having to specify them upfront through render passes and frame buffers. The result is fewer code and reduced setup steps. Dynamic rendering provides more flexibility and we can change the target attachments at runtime without recreating the associated elements (render passes and frame buffers). However, for certain tasks it is a little bit more explicit than the traditional approach. For example, with render passes you get som implicit image transitions (which basically prepared images from undefined layouts to the proper render one). Dynamic rendering requires us to explicitly define layout transitions and synchronization, which requires a little bit more of code, but is not so dramatic. In addition, I personally find more clear the dynamic render approach, where everything is explicit and you do not have to guess what automatic transition or locking is applied.

We will explain how to use dynamic rendering while we define the RenderScn struct

const std = @import("std");
const vk = @import("vk");
const vulkan = @import("vulkan");

pub const RenderScn = struct {
    pub fn cleanup(self: *RenderScn, allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx) void {
        _ = self;
        _ = allocator;
        _ = vkCtx;
    }

    pub fn create(allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx) !RenderScn {
        _ = allocator;
        _ = vkCtx;

        return .{};
    }

    pub fn render(self: *RenderScn, vkCtx: *const vk.ctx.VkCtx, vkCmd: vk.cmd.VkCmdBuff, imageIndex: u32) !void {
        _ = self;

        const cmdHandle = vkCmd.cmdBuffProxy.handle;
        const device = vkCtx.vkDevice.deviceProxy;

        const renderAttInfo = vulkan.RenderingAttachmentInfo{
            .image_view = vkCtx.vkSwapChain.imageViews[imageIndex].view,
            .image_layout = vulkan.ImageLayout.attachment_optimal_khr,
            .load_op = vulkan.AttachmentLoadOp.clear,
            .store_op = vulkan.AttachmentStoreOp.store,
            .clear_value = vulkan.ClearValue{ .color = .{ .float_32 = .{ 0.5, 0.7, 0.9, 1.0 } } },
            .resolve_mode = vulkan.ResolveModeFlags{},
            .resolve_image_layout = vulkan.ImageLayout.attachment_optimal_khr,
        };

        const extent = vkCtx.vkSwapChain.extent;
        const renderInfo = vulkan.RenderingInfo{
            .render_area = .{ .extent = extent, .offset = .{ .x = 0, .y = 0 } },
            .layer_count = 1,
            .color_attachment_count = 1,
            .p_color_attachments = @ptrCast(&renderAttInfo),
            .view_mask = 0,
        };

        device.cmdBeginRendering(cmdHandle, @ptrCast(&renderInfo));
        device.cmdEndRendering(cmdHandle);
    }
};

The create function will be used to instantiate the RenderScn struct. You will see that there are many unused parameters. Do not worry about them, we will use them in the next chapters. The cleanup function is also empty by now. The interesting part is in the render function.

In this function you may see that we create an instance of the RenderingAttachmentInfo struct which is defined by the following attributes:

• image_view: This is the image view that will be used for rendering. In our case a swap chain image (the one that we have acquired).
• image_layout: The layout that the image will be when rendering. Vulkan image layouts define how the GPU interprets the memory of an image at any given time. Is like the "mode" into which an image is in in order to read/write data to/from it.
• load_op: Specifies what will happen to the contents of this attachment when the render starts. In our case we want to clear the contents so we use the vulkan.AttachmentLoadOp.clear value (equivalent to VK_ATTACHMENT_LOAD_OP_CLEAR value). Other possible values are vulkan.AttachmentLoadOp.load (equivalent to VK_ATTACHMENT_LOAD_OP_LOAD) to preserve the contents of the attachment (from a previous pass) or vulkan.AttachmentLoadOp.dont_care (equivalent toVK_ATTACHMENT_LOAD_OP_DONT_CARE) if we just simply do not care (for example, we may be sure that we are going to fill up again the attachment contents and we do not want to waste time in clearing it).
• store_op: Which specify what we will do the contents of the attachment once we have finished rendering. In this case we use vulkan.AttachmentStoreOp.store (equivalent toVK_ATTACHMENT_STORE_OP_STORE) which states that the contents of the attachment will be stored in memory. We want to preserve the contents to be presented on the screen. Another option is to use the vulkan.AttachmentStoreOp.dont_care (equivalent to VK_ATTACHMENT_STORE_OP_DONT_CARE) value if we just simply don`t care.
• clear_value: The color that will be used to clear the render area.
• resolve_mode and resolve_image_layout: These attributes can be used when applying MSAA, we can ignore them by now.

Render information is defined by the RenderingInfo structure which is defined by the following attributes:

• receives the attachments array created in the createAttachments and will also require to create specific render information per swap chain image in the form of VkRenderingInfo instances, which is defined by the following attributes:

• render_area: Is the area of the attachments that we will be using to render.

• layer_count: The number of layers rendered in each attachment.

• color_attachment_count: The number of color attachments to be used (from the list passed in the )p_color_attachments).

• p_color_attachments: The list of color attachments (we may have other types of attachments for example to render depth). In our case it will be the attachments created previously.

• view_mask: It is bitmask which controls which views are active while rendering. We will not be using this so we will set it to 0.

Now it is turn to go back to the Render struct to revisit pending functions to be described. Let's start with renderMainInit:

pub const Render = struct {
    ...
    fn renderMainInit(self: *Render, vkCmd: vk.cmd.VkCmdBuff, imageIndex: u32) void {
        const initBarriers = [_]vulkan.ImageMemoryBarrier2{.{
            .old_layout = vulkan.ImageLayout.undefined,
            .new_layout = vulkan.ImageLayout.color_attachment_optimal,
            .src_stage_mask = .{ .color_attachment_output_bit = true },
            .dst_stage_mask = .{ .color_attachment_output_bit = true },
            .src_access_mask = .{},
            .dst_access_mask = .{ .color_attachment_write_bit = true },
            .src_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
            .dst_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
            .subresource_range = .{
                .aspect_mask = .{ .color_bit = true },
                .base_mip_level = 0,
                .level_count = vulkan.REMAINING_MIP_LEVELS,
                .base_array_layer = 0,
                .layer_count = vulkan.REMAINING_ARRAY_LAYERS,
            },
            .image = self.vkCtx.vkSwapChain.imageViews[imageIndex].image,
        }};
        const initDepInfo = vulkan.DependencyInfo{
            .image_memory_barrier_count = initBarriers.len,
            .p_image_memory_barriers = &initBarriers,
        };
        self.vkCtx.vkDevice.deviceProxy.cmdPipelineBarrier2(vkCmd.cmdBuffProxy.handle, &initDepInfo);
    }
    ...
};

this code sets up an image barrier for the current swap chain image to be used to render to. This is a new synchronization element that we will use to set up the image view in the proper layout. When using render passes (old Vulkan approach), some of these transitions were done automatically when starting the render pass. With dynamic render we need to explicitly transition all the images. It may seem a little bit verbose, but, in my opinion, it helps to properly understand what is happening under the hood. Dynamic rendering also removes some verbosity associated to render passes, so at the end, I think it is worth the effort of explicitly transition image layouts.

So what are image barriers? Image barriers are the way to proper synchronize access to images in Vulkan, either for read or write operations and to manage image layout transitions. A barrier is set in a command buffer to control the execution of next commands. In order to execute them, the conditions set by the barrier need to be fulfilled. This is why it is called a barrier, because it blocks next commands to be processed. In order to properly use swap chain images, we need to transition to the proper layout. We need to transition from vulkan.ImageLayout.undefined (VK_IMAGE_LAYOUT_UNDEFINED) to vulkan.ImageLayout.color_attachment_optimal (VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL) before rendering, and then to vulkan.ImageLayout.present_src_khr (VK_IMAGE_LAYOUT_PRESENT_SRC_KHR) before presentation. We will achieve this with memory barriers.

In the code, we just create a ImageMemoryBarrier2 structure and record it to the command buffer by calling cmdPipelineBarrier2. The layout fields of the ImageMemoryBarrier2 are:

• old_layout is the old layout in an image layout transition. The layout that we expect to have.
• new_layout is the new layout in an image layout transition. The layout that we want to have after the barrier.

Let's talk about a little bit about memory. In the GPU there will be multiple caches, which allow fast access to memory data for the ongoing commands. As you may guess, having multiple places where data can reside may lead to inconsistencies. Therefore, we need to properly control how we access that. In Vulkan, when we say that memory is "available" this means that the data is ready in the main cache, so it can be accessed by lower level caches, which will the ones used by the cores that execute the commands. When the data finally reaches those low level caches we say that is "visible". In order to control "availability" and "visibility" we use the combination of stage and access masks. With stage masks, we control to which point in the pipeline (think as a set of steps which command need to transverse) we are referring to, and with access masks we define the purpose (for what, to read to write, etc.).

Let's analyze the first image memory barrier:

• We set the old_layout to vulkan.ImageLayout.undefined (VK_IMAGE_LAYOUT_UNDEFINED), which basically says, we do not care about previous layout state and set new_layout to vulkan.ImageLayout.color_attachment_optimal (VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL) which is the state we want to perform rendering operations.
• We set src_stage_mask mask to color_attachment_output_bit (VK_PIPELINE_STAGE_2_COLOR_ATTACHMENT_OUTPUT_BIT) which basically states that all previously submitted commands need to have finished that state in the pipeline.
• We set src_access_mask empty (equivalent to VK_ACCESS_2_NONE), because we do not care an initial layout we do not need to set any special restriction on source access.
• We set dst_stage_mask to color_attachment_output_bit (VK_PIPELINE_STAGE_2_COLOR_ATTACHMENT_OUTPUT_BIT) because we will be accessing this image when outputting color. Any command that we submit later on does not need to be affected until it reaches this stage.
• We set dst_access_mask to color_attachment_write_bit (VK_ACCESS_2_COLOR_ATTACHMENT_WRITE_BIT) because we want to control write operations, which will only happen in combination with dstStage.
• We use the color_bit flag (VK_IMAGE_ASPECT_COLOR_BIT) as aspect_mask since we are dealing with color information now. We will not be using mipmap levels or array layers of images so we just set them to default values.

It is now the turn for the renderMainFinish function:

pub const Render = struct {
    ...
    fn renderMainFinish(self: *Render, vkCmd: vk.cmd.VkCmdBuff, imageIndex: u32) void {
        const endBarriers = [_]vulkan.ImageMemoryBarrier2{.{
            .old_layout = vulkan.ImageLayout.color_attachment_optimal,
            .new_layout = vulkan.ImageLayout.present_src_khr,
            .src_stage_mask = .{ .color_attachment_output_bit = true },
            .dst_stage_mask = .{ .bottom_of_pipe_bit = true },
            .src_access_mask = .{ .color_attachment_write_bit = true },
            .dst_access_mask = .{},
            .src_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
            .dst_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
            .subresource_range = .{
                .aspect_mask = .{ .color_bit = true },
                .base_mip_level = 0,
                .level_count = vulkan.REMAINING_MIP_LEVELS,
                .base_array_layer = 0,
                .layer_count = vulkan.REMAINING_ARRAY_LAYERS,
            },
            .image = self.vkCtx.vkSwapChain.imageViews[imageIndex].image,
        }};
        const endDepInfo = vulkan.DependencyInfo{
            .image_memory_barrier_count = endBarriers.len,
            .p_image_memory_barriers = &endBarriers,
        };
        self.vkCtx.vkDevice.deviceProxy.cmdPipelineBarrier2(vkCmd.cmdBuffProxy.handle, &endDepInfo);
    }
    ...
};

This will be called once the render commands have been recorded and prior to swap chain image presentation. We need just to set up another image barrier to perform the layout transition:

• We set the old_layout to vulkan.ImageLayout.color_attachment_optimal (VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL), which is the layout that our swap chain image will be when rendering, and set new_layout to vulkan.ImageLayout.present_src_khr (VK_IMAGE_LAYOUT_PRESENT_SRC_KHR) which is the state we want to have when presenting the image.
• We set src_stage_mask mask to color_attachment_output_bit (VK_PIPELINE_STAGE_2_COLOR_ATTACHMENT_OUTPUT_BIT) which basically states that all previously submitted commands need to have finished that state in the pipeline. All the rendering commands must have passed that stage.
• We set src_access_mask to color_attachment_write_bit (VK_ACCESS_2_COLOR_ATTACHMENT_WRITE_BIT), because we need to wait to any operation which writes to the image.
• We set dst_stage_mask to bottom_of_pipe_bit (VK_PIPELINE_STAGE_2_BOTTOM_OF_PIPE_BIT) to represent the end of the pipeline and we use it to state that no subsequent GPU operations depend on it.
• We set dst_access_mask to an empty value (equivalent to VK_PIPELINE_STAGE_2_NONE) since , again, no subsequent GPU operations depend on it.
• We use the color_bit flag (VK_IMAGE_ASPECT_COLOR_BIT) as aspect_mask since we are dealing with color information now. We will not be using mip levels or array layers of images so we just set them to default values.

Synchronization is a complex topic. If you want to have good understanding of it this video is the best one you can find. I definitely recommend you to watch it.

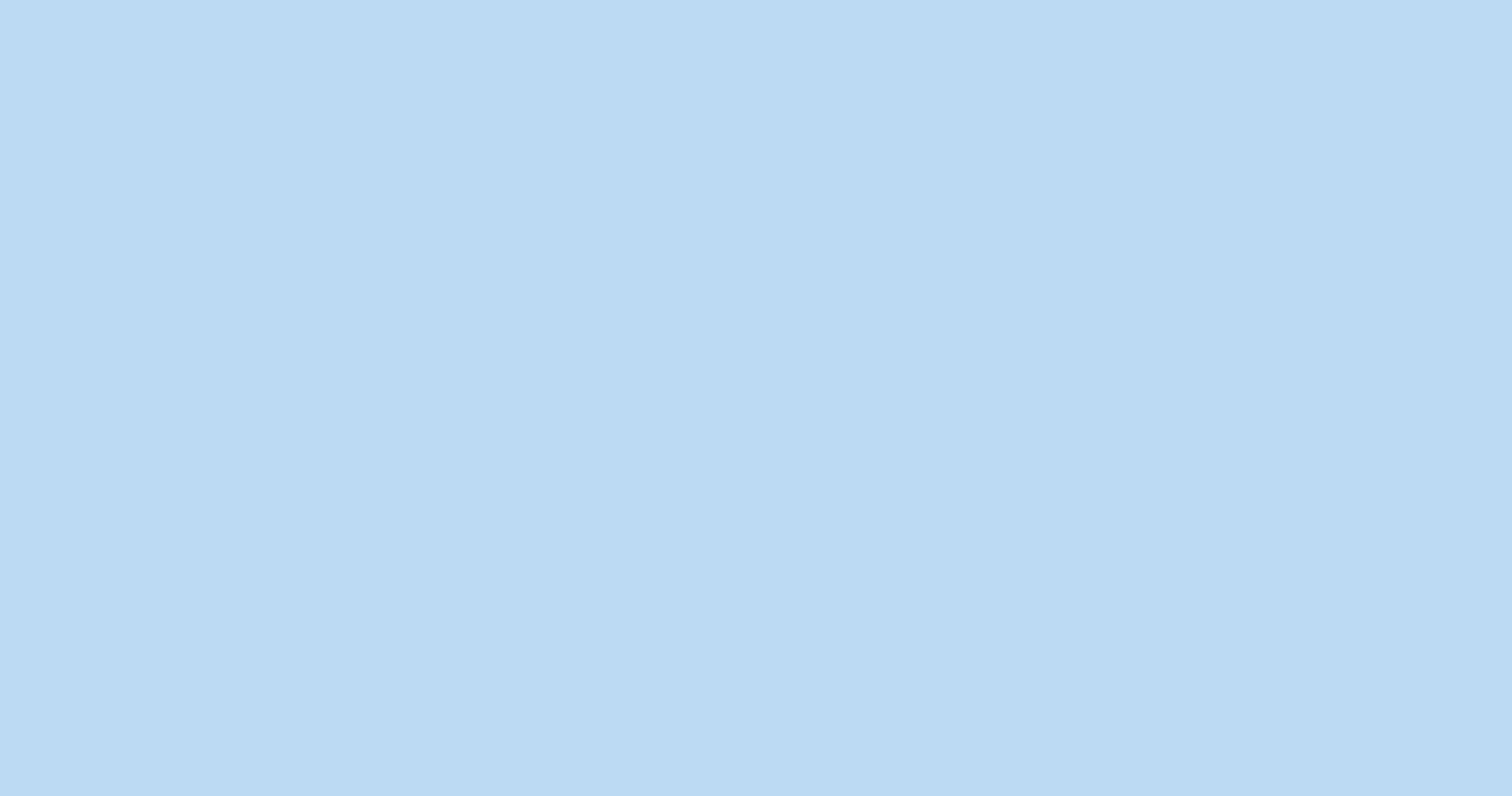

We have finished by now! With all that code we are now able to see a wonderful empty screen with the clear color specified like this:

This chapter is a little bit long, but I think is important to present all these concepts together. Now you are really starting to understand why Vulkan is called an explicit API. The good news is that, in my opinion, the elements presented here are the more difficult to understand. Although we still need to define some important topics, such as pipelines or data buffers, I think they will be easier to understand once you have made your head around this.

Next chapter
