Chapter 14 - Deferred Rendering (I)
In this chapter we will set up the basis to implement deferred shading. We will split the rendering into two phases, one to render the geometry and relevant parameters of the scene and another one to apply lighting. In this chapter we will cover base changes, leaving the changes required to apply lighting for the next chapter. We will not be introducing new Vulkan concepts, just combine the ones we have described previously to support deferred shading. Therefore, you will see larger chunks of code with an explanatory overview, focusing on the key concepts of Vulkan that need to be applied to implement deferred shading.
You can find the complete source code for this chapter here.
Deferred shading
Up to now the way that we are rendering a 3D scene is called forward rendering. Deferred rendering is frequently used when having multiple lights and usually consists of two phases. In the first phase data that is required for shading computation is generated (depth values, albedo colors, material properties, etc.). In the second phase, taking all that information as inputs lighting is applied to each fragment.
Hence, with deferred shading we perform two rendering phases. The first one, is the geometry pass, where we render the scene to several attachments that will contain the following information:
- The diffuse colors for each position. We call this the 'albedo'.
- The normals at each position.
- Depth values.
- Other material information,
All that information is stored in attachments, as the depth attachment used in previous chapters.
The second step is called the lighting phase. This phase takes a shape that fills the whole screen and generates the final color information, using lighting, for each fragment using as inputs the attachment outputs generated in the previous phase. When performing the lighting phase, the depth test in the geometry phase will have already removed all the scene data that is not be seen. Hence, the number of operations to be done are restricted to what will be displayed on the screen.
Pipeline modifications
We need to modify the VkPipeline struct to be able to use more than one color output attachment. In order to do that, we first need to update the VkPipelineCreateInfo struct to store an array of color formats, one per color output attachment:
pub const VkPipelineCreateInfo = struct {
colorFormats: []const vulkan.Format,
...
};In the VkPipeline struct we need to take into account the fact that we may have more than one attachment:
pub const VkPipeline = struct {
...
pub fn create(allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx, createInfo: *const VkPipelineCreateInfo) !VkPipeline {
...
const numAttachments = createInfo.colorFormats.len;
const pcbas = try allocator.alloc(vulkan.PipelineColorBlendAttachmentState, numAttachments);
defer allocator.free(pcbas);
for (0..numAttachments) |i| {
pcbas[i] = vulkan.PipelineColorBlendAttachmentState{
.blend_enable = if (createInfo.useBlend) vulkan.Bool32.true else vulkan.Bool32.false,
.color_blend_op = .add,
.src_color_blend_factor = .src_alpha,
.dst_color_blend_factor = .one_minus_src_alpha,
.alpha_blend_op = .add,
.src_alpha_blend_factor = .src_alpha,
.dst_alpha_blend_factor = .zero,
.color_write_mask = .{ .r_bit = true, .g_bit = true, .b_bit = true, .a_bit = true },
};
}
const pcbsci = vulkan.PipelineColorBlendStateCreateInfo{
.logic_op_enable = vulkan.Bool32.false,
.logic_op = .copy,
.attachment_count = @as(u32, @intCast(pcbas.len)),
.p_attachments = pcbas.ptr,
.blend_constants = [_]f32{ 0, 0, 0, 0 },
};
const renderCreateInfo = vulkan.PipelineRenderingCreateInfo{
.color_attachment_count = @as(u32, @intCast(createInfo.colorFormats.len)),
.p_color_attachment_formats = createInfo.colorFormats.ptr,
.view_mask = 0,
.depth_attachment_format = createInfo.depthFormat,
.stencil_attachment_format = vulkan.Format.undefined,
};
...
}
...
};Scene render modifications
The next step is to modify the RenderScn struct to also be able to use several attachments as color output. In previous chapters, RenderScn used, a color output attachment that was managed in the Render struct, now, we will move that code to the RenderScn struct and add support for having more than one color output:
const COLOR_ATTACHMENT_FORMAT = vulkan.Format.r16g16b16a16_sfloat;
pub const RenderScn = struct {
attachments: []eng.rend.Attachment,
...
depthAttachment: eng.rend.Attachment,
...
pub fn cleanup(self: *RenderScn, allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx) void {
...
for (self.attachments) |*attachment| {
attachment.cleanup(vkCtx);
}
allocator.free(self.attachments);
self.depthAttachment.cleanup(vkCtx);
...
}
pub fn create(allocator: std.mem.Allocator, vkCtx: *vk.ctx.VkCtx) !RenderScn {
const attachments = try createColorAttachment(allocator, vkCtx);
const depthAttachment = try createDepthAttachment(vkCtx);
...
// Pipeline
const colorFormats = try allocator.alloc(vulkan.Format, attachments.len);
defer allocator.free(colorFormats);
for (0..colorFormats.len) |i| {
colorFormats[i] = attachments[i].vkImageView.format;
}
const vkPipelineCreateInfo = vk.pipe.VkPipelineCreateInfo{
.colorFormats = colorFormats,
...
};
...
return .{
.attachments = attachments,
.buffsCamera = buffsCamera,
.depthAttachment = depthAttachment,
.descLayoutFrgSt = descLayoutFrgSt,
.descLayoutVtx = descLayoutVtx,
.descLayoutTexture = descLayoutTexture,
.textSampler = textSampler,
.vkPipeline = vkPipeline,
};
}
...
};The struct will store in the attachments attribute an array of attachments which will be used as color output. The depth attachment is no longer an array, we will not need to have one per frame in flight since we will not have several sets of color output attachments to reduce GPU memory usage. We will control the synchronization with barriers to prevent any issue. We may lose some degree of parallelism but it is more important to reduce memory usage.
The createColorAttachment function is quite similar to the one used to create depth attachments, we just need to set the proper color format and usage flags:
pub const RenderScn = struct {
...
fn createColorAttachment(allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx) ![]eng.rend.Attachment {
const extent = vkCtx.vkSwapChain.extent;
const flags = vulkan.ImageUsageFlags{
.color_attachment_bit = true,
.sampled_bit = true,
};
const numAttachments = 1;
const attachments = try allocator.alloc(eng.rend.Attachment, numAttachments);
errdefer allocator.free(attachments);
for (0..numAttachments) |i| {
const attachment = try eng.rend.Attachment.create(
vkCtx,
extent.width,
extent.height,
COLOR_ATTACHMENT_FORMAT,
flags,
);
attachments[i] = attachment;
}
return attachments;
}
...
};By now, we will use just one color attachment but the code is ready to add more attachments. In next chapters we will see that we will need more than color (albedo) and depth attachment but one also for normals, etc. The createDepthAttachments function has been renamed to createDepthAttachment since it will return just one depth attachment:
pub const RenderScn = struct {
...
fn createDepthAttachment(vkCtx: *const vk.ctx.VkCtx) !eng.rend.Attachment {
const extent = vkCtx.vkSwapChain.extent;
const flags = vulkan.ImageUsageFlags{
.depth_stencil_attachment_bit = true,
};
return try eng.rend.Attachment.create(
vkCtx,
extent.width,
extent.height,
DEPTH_FORMAT,
flags,
);
}
...
};The render function needs also to be modified:
pub const RenderScn = struct {
...
pub fn render(
self: *RenderScn,
vkCtx: *const vk.ctx.VkCtx,
engCtx: *const eng.engine.EngCtx,
vkCmd: vk.cmd.VkCmdBuff,
modelsCache: *const eng.mcach.ModelsCache,
materialsCache: *const eng.mcach.MaterialsCache,
frameIdx: u8,
) !void {
...
try self.renderInit(allocator, vkCtx, cmdHandle);
const renderAttInfos = try allocator.alloc(vulkan.RenderingAttachmentInfo, self.attachments.len);
defer allocator.free(renderAttInfos);
for (0..self.attachments.len) |i| {
const renderAttInfo = vulkan.RenderingAttachmentInfo{
.image_view = self.attachments[i].vkImageView.view,
.image_layout = vulkan.ImageLayout.color_attachment_optimal,
.load_op = vulkan.AttachmentLoadOp.clear,
.store_op = vulkan.AttachmentStoreOp.store,
.clear_value = vulkan.ClearValue{ .color = .{ .float_32 = .{ 0.0, 0.0, 0.0, 1.0 } } },
.resolve_mode = vulkan.ResolveModeFlags{},
.resolve_image_layout = vulkan.ImageLayout.attachment_optimal,
};
renderAttInfos[i] = renderAttInfo;
}
const depthAttInfo = vulkan.RenderingAttachmentInfo{
.image_view = self.depthAttachment.vkImageView.view,
.image_layout = vulkan.ImageLayout.depth_stencil_attachment_optimal,
.load_op = vulkan.AttachmentLoadOp.clear,
.store_op = vulkan.AttachmentStoreOp.dont_care,
.clear_value = vulkan.ClearValue{ .depth_stencil = .{ .depth = 1.0, .stencil = 0.0 } },
.resolve_mode = vulkan.ResolveModeFlags{},
.resolve_image_layout = vulkan.ImageLayout.undefined,
};
const extent = vkCtx.vkSwapChain.extent;
const renderInfo = vulkan.RenderingInfo{
.render_area = .{ .extent = extent, .offset = .{ .x = 0, .y = 0 } },
.layer_count = 1,
.color_attachment_count = @as(u32, @intCast(renderAttInfos.len)),
.p_color_attachments = renderAttInfos.ptr,
.p_depth_attachment = &depthAttInfo,
.view_mask = 0,
};
device.cmdBeginRendering(cmdHandle, @ptrCast(&renderInfo));
const image: vulkan.Image = @enumFromInt(@intFromPtr(self.depthAttachment.vkImage.image));
...
try self.renderFinish(allocator, vkCtx, cmdHandle);
}
...
};We first call a function named renderInit which will be similar to the used in the render function of the Render struct. It will set up image barriers to perform the image transition layouts and synchronization. The RenderingAttachmentInfo for color output will now be an array sized to the number of attachments. After we have finished to record drawing commands, we will call the renderFinish which, again, performs a new image transition layout. We have moved also the barriers associated to the depth attachment to the renderInit function, which is defined like this:
pub const RenderScn = struct {
...
fn renderInit(self: *RenderScn, allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx, cmdHandle: vulkan.CommandBuffer) !void {
const barriers = try allocator.alloc(vulkan.ImageMemoryBarrier2, self.attachments.len + 1);
defer allocator.free(barriers);
for (0..barriers.len - 1) |i| {
const barrier = vulkan.ImageMemoryBarrier2{
.old_layout = vulkan.ImageLayout.undefined,
.new_layout = vulkan.ImageLayout.color_attachment_optimal,
.src_stage_mask = .{ .color_attachment_output_bit = true },
.dst_stage_mask = .{ .color_attachment_output_bit = true },
.src_access_mask = .{},
.dst_access_mask = .{ .color_attachment_write_bit = true },
.src_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.dst_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.subresource_range = .{
.aspect_mask = .{ .color_bit = true },
.base_mip_level = 0,
.level_count = vulkan.REMAINING_MIP_LEVELS,
.base_array_layer = 0,
.layer_count = vulkan.REMAINING_ARRAY_LAYERS,
},
.image = @enumFromInt(@intFromPtr(self.attachments[i].vkImage.image)),
};
barriers[i] = barrier;
}
const depthImage: vulkan.Image = @enumFromInt(@intFromPtr(self.depthAttachment.vkImage.image));
barriers[barriers.len - 1] = vulkan.ImageMemoryBarrier2{
.old_layout = vulkan.ImageLayout.undefined,
.new_layout = vulkan.ImageLayout.depth_attachment_optimal,
.src_stage_mask = .{ .early_fragment_tests_bit = true, .late_fragment_tests_bit = true },
.dst_stage_mask = .{ .early_fragment_tests_bit = true, .late_fragment_tests_bit = true },
.src_access_mask = .{
.depth_stencil_attachment_write_bit = true,
},
.dst_access_mask = .{
.depth_stencil_attachment_read_bit = true,
.depth_stencil_attachment_write_bit = true,
},
.src_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.dst_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.subresource_range = .{
.aspect_mask = .{ .depth_bit = true },
.base_mip_level = 0,
.level_count = vulkan.REMAINING_MIP_LEVELS,
.base_array_layer = 0,
.layer_count = vulkan.REMAINING_ARRAY_LAYERS,
},
.image = depthImage,
};
const depInfo = vulkan.DependencyInfo{
.image_memory_barrier_count = @as(u32, @intCast(barriers.len)),
.p_image_memory_barriers = barriers.ptr,
};
vkCtx.vkDevice.deviceProxy.cmdPipelineBarrier2(cmdHandle, &depInfo);
}
...
};As you can see we set the same barriers we used previously in the Render struct but applied to the output color attachments. We also include here the transition of the depth attachment. The renderFinish function is defined like this.
pub const RenderScn = struct {
...
fn renderFinish(self: *RenderScn, allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx, cmdHandle: vulkan.CommandBuffer) !void {
const barriers = try allocator.alloc(vulkan.ImageMemoryBarrier2, self.attachments.len);
defer allocator.free(barriers);
for (0..self.attachments.len) |i| {
const barrier =
vulkan.ImageMemoryBarrier2{
.old_layout = vulkan.ImageLayout.color_attachment_optimal,
.new_layout = vulkan.ImageLayout.read_only_optimal,
.src_stage_mask = .{ .color_attachment_output_bit = true },
.dst_stage_mask = .{ .fragment_shader_bit = true },
.src_access_mask = .{ .color_attachment_write_bit = true },
.dst_access_mask = .{ .color_attachment_read_bit = true },
.src_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.dst_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.subresource_range = .{
.aspect_mask = .{ .color_bit = true },
.base_mip_level = 0,
.level_count = vulkan.REMAINING_MIP_LEVELS,
.base_array_layer = 0,
.layer_count = vulkan.REMAINING_ARRAY_LAYERS,
},
.image = @enumFromInt(@intFromPtr(self.attachments[i].vkImage.image)),
};
barriers[i] = barrier;
}
const depInfo = vulkan.DependencyInfo{
.image_memory_barrier_count = @as(u32, @intCast(barriers.len)),
.p_image_memory_barriers = barriers.ptr,
};
vkCtx.vkDevice.deviceProxy.cmdPipelineBarrier2(cmdHandle, &depInfo);
}
...
};We just transition the color output images to read_only_optimal layout when all the previous commands have gone through color output stage. We need also to update the resize function due to the changes in the attachments:
pub const RenderScn = struct {
...
pub fn resize(self: *RenderScn, vkCtx: *const vk.ctx.VkCtx, engCtx: *const eng.engine.EngCtx) !void {
const allocator = engCtx.allocator;
for (self.attachments) |*attachment| {
attachment.cleanup(vkCtx);
}
allocator.free(self.attachments);
self.depthAttachment.cleanup(vkCtx);
const attachments = try createColorAttachment(allocator, vkCtx);
const depthAttachment = try createDepthAttachment(vkCtx);
self.attachments = attachments;
self.depthAttachment = depthAttachment;
}
...
};The vertex shader, does not need to be changed, however the fragment shader (scn_frg.glsl) is slightly modified:
#version 450
// Keep in sync manually with code
const int MAX_TEXTURES = 100;
layout(location = 0) in vec2 inTextCoords;
layout(location = 0) out vec4 outAlbedo;
struct Material {
vec4 diffuseColor;
uint hasTexture;
uint textureIdx;
uint padding[2];
};
layout(set = 1, binding = 0) readonly buffer MaterialUniform {
Material materials[];
} matUniform;
layout(set = 2, binding = 0) uniform sampler2D textSampler[MAX_TEXTURES];
layout(push_constant) uniform pc {
layout(offset = 64) uint materialIdx;
} push_constants;
void main()
{
Material material = matUniform.materials[push_constants.materialIdx];
if (material.hasTexture == 1) {
outAlbedo = texture(textSampler[material.textureIdx], inTextCoords);
} else {
outAlbedo = material.diffuseColor;
}
}The fragment shader is almost identical, we have changed the output attachment name by outAlbedo.
Light render
We are ready now to develop the code needed to support the lighting phase. The rendering tasks of the lighting phase will be handled in a new struct named RenderLight. It is defined in a new file under src/eng/renderLight.zig so you will need to include it in the src/eng/mod.zig file (pub const rlgt = @import("renderLight.zig");). It starts like this:
const com = @import("com");
const eng = @import("mod.zig");
const std = @import("std");
const vk = @import("vk");
const vulkan = @import("vulkan");
pub const COLOR_ATTACHMENT_FORMAT = vulkan.Format.r32g32b32a32_sfloat;
const DESC_ID_LIGHT_TEXT_SAMPLER = "RENDER_LIGHT_DESC_ID_TEXT";
const EmptyVtxBuffDesc = struct {
const binding_description = vulkan.VertexInputBindingDescription{
.binding = 0,
.stride = @sizeOf(EmptyVtxBuffDesc),
.input_rate = .vertex,
};
const attribute_description = [_]vulkan.VertexInputAttributeDescription{};
};
pub const RenderLight = struct {
descLayoutFrg: vk.desc.VkDescSetLayout,
outputAtt: eng.rend.Attachment,
textSampler: vk.text.VkTextSampler,
vkPipeline: vk.pipe.VkPipeline,
...
pub fn create(
allocator: std.mem.Allocator,
vkCtx: *vk.ctx.VkCtx,
inputAttachments: *const []eng.rend.Attachment,
) !RenderLight {
const outputAtt = try createColorAttachment(vkCtx);
// Shader modules
var arena = std.heap.ArenaAllocator.init(std.heap.page_allocator);
defer arena.deinit();
const vertCode align(@alignOf(u32)) = try com.utils.loadFile(arena.allocator(), "res/shaders/light_vtx.glsl.spv");
const vert = try vkCtx.vkDevice.deviceProxy.createShaderModule(&.{
.code_size = vertCode.len,
.p_code = @ptrCast(@alignCast(vertCode)),
}, null);
defer vkCtx.vkDevice.deviceProxy.destroyShaderModule(vert, null);
const fragCode align(@alignOf(u32)) = try com.utils.loadFile(arena.allocator(), "res/shaders/light_frg.glsl.spv");
const frag = try vkCtx.vkDevice.deviceProxy.createShaderModule(&.{
.code_size = fragCode.len,
.p_code = @ptrCast(@alignCast(fragCode)),
}, null);
defer vkCtx.vkDevice.deviceProxy.destroyShaderModule(frag, null);
const modulesInfo = try allocator.alloc(vk.pipe.ShaderModuleInfo, 2);
modulesInfo[0] = .{ .module = vert, .stage = .{ .vertex_bit = true } };
modulesInfo[1] = .{ .module = frag, .stage = .{ .fragment_bit = true } };
defer allocator.free(modulesInfo);
// Textures
const samplerInfo = vk.text.VkTextSamplerInfo{
.addressMode = vulkan.SamplerAddressMode.repeat,
.anisotropy = true,
.borderColor = vulkan.BorderColor.float_opaque_black,
};
const textSampler = try vk.text.VkTextSampler.create(vkCtx, samplerInfo);
// Descriptor sets
const layoutInfos = try allocator.alloc(vk.desc.LayoutInfo, inputAttachments.len);
defer allocator.free(layoutInfos);
const imageViews = try allocator.alloc(vk.imv.VkImageView, inputAttachments.len);
defer allocator.free(imageViews);
for (0..inputAttachments.len) |i| {
layoutInfos[i] = vk.desc.LayoutInfo{
.binding = 0,
.descCount = 1,
.descType = vulkan.DescriptorType.combined_image_sampler,
.stageFlags = vulkan.ShaderStageFlags{ .fragment_bit = true },
};
imageViews[i] = inputAttachments.ptr[i].vkImageView;
}
const descLayoutFrg = try vk.desc.VkDescSetLayout.create(
allocator,
vkCtx,
layoutInfos,
);
const attDescSet = try vkCtx.vkDescAllocator.addDescSet(
allocator,
vkCtx.vkPhysDevice,
vkCtx.vkDevice,
DESC_ID_LIGHT_TEXT_SAMPLER,
descLayoutFrg,
);
try attDescSet.setImages(allocator, vkCtx.vkDevice, imageViews, textSampler, 0);
const descSetLayouts = [_]vulkan.DescriptorSetLayout{descLayoutFrg.descSetLayout};
// Pipeline
const colorFormats = [_]vulkan.Format{COLOR_ATTACHMENT_FORMAT};
const vkPipelineCreateInfo = vk.pipe.VkPipelineCreateInfo{
.colorFormats = colorFormats[0..],
.descSetLayouts = descSetLayouts[0..],
.modulesInfo = modulesInfo,
.useBlend = true,
.pushConstants = null,
.vtxBuffDesc = .{
.attribute_description = @constCast(&EmptyVtxBuffDesc.attribute_description)[0..],
.binding_description = EmptyVtxBuffDesc.binding_description,
},
};
const vkPipeline = try vk.pipe.VkPipeline.create(allocator, vkCtx, &vkPipelineCreateInfo);
return .{
.descLayoutFrg = descLayoutFrg,
.outputAtt = outputAtt,
.textSampler = textSampler,
.vkPipeline = vkPipeline,
};
}
};The create function is similar to the one used in RenderPost struct. We will be rendering to an image just dumping color. We will use a quad to cover the whole clip area and sample from the output attachments used while rendering the scene. This is why we create as many descriptor set layouts as attachments we will have. We are using the setImages function to link the output attachments used in the geometry render phase (which will be inputs in this phase), to the descriptor set we will used for sampling. We will see the implementation later on.
The cleanup function is defined like this:
pub const RenderLight = struct {
...
pub fn cleanup(self: *RenderLight, vkCtx: *vk.ctx.VkCtx) void {
self.descLayoutFrg.cleanup(vkCtx);
self.outputAtt.cleanup(vkCtx);
self.vkPipeline.cleanup(vkCtx);
self.textSampler.cleanup(vkCtx);
}
...
};The createColorAttachment function is defined like this:
pub const RenderLight = struct {
...
fn createColorAttachment(vkCtx: *const vk.ctx.VkCtx) !eng.rend.Attachment {
const extent = vkCtx.vkSwapChain.extent;
const flags = vulkan.ImageUsageFlags{
.color_attachment_bit = true,
.sampled_bit = true,
};
const attColor = try eng.rend.Attachment.create(
vkCtx,
extent.width,
extent.height,
COLOR_ATTACHMENT_FORMAT,
flags,
);
return attColor;
}
...
};The render function is quite similar to the one used in the PostRender struct:
pub const RenderLight = struct {
...
pub fn render(
self: *RenderLight,
vkCtx: *const vk.ctx.VkCtx,
engCtx: *const eng.engine.EngCtx,
vkCmd: vk.cmd.VkCmdBuff,
) !void {
const allocator = engCtx.allocator;
const cmdHandle = vkCmd.cmdBuffProxy.handle;
const device = vkCtx.vkDevice.deviceProxy;
self.renderInit(vkCtx, cmdHandle);
const renderAttInfo = vulkan.RenderingAttachmentInfo{
.image_view = self.outputAtt.vkImageView.view,
.image_layout = vulkan.ImageLayout.attachment_optimal_khr,
.load_op = vulkan.AttachmentLoadOp.clear,
.store_op = vulkan.AttachmentStoreOp.store,
.clear_value = vulkan.ClearValue{ .color = .{ .float_32 = .{ 0.0, 0.0, 0.0, 1.0 } } },
.resolve_mode = vulkan.ResolveModeFlags{},
.resolve_image_layout = vulkan.ImageLayout.attachment_optimal_khr,
};
const extent = vkCtx.vkSwapChain.extent;
const renderInfo = vulkan.RenderingInfo{
.render_area = .{ .extent = extent, .offset = .{ .x = 0, .y = 0 } },
.layer_count = 1,
.color_attachment_count = 1,
.p_color_attachments = &[_]vulkan.RenderingAttachmentInfo{renderAttInfo},
.view_mask = 0,
};
device.cmdBeginRendering(cmdHandle, @ptrCast(&renderInfo));
device.cmdBindPipeline(cmdHandle, vulkan.PipelineBindPoint.graphics, self.vkPipeline.pipeline);
const viewPort = [_]vulkan.Viewport{.{
.x = 0,
.y = @as(f32, @floatFromInt(extent.height)),
.width = @as(f32, @floatFromInt(extent.width)),
.height = -1.0 * @as(f32, @floatFromInt(extent.height)),
.min_depth = 0,
.max_depth = 1,
}};
device.cmdSetViewport(cmdHandle, 0, viewPort.len, &viewPort);
const scissor = [_]vulkan.Rect2D{.{
.offset = vulkan.Offset2D{ .x = 0, .y = 0 },
.extent = extent,
}};
device.cmdSetScissor(cmdHandle, 0, scissor.len, &scissor);
// Bind descriptor sets
const vkDescAllocator = vkCtx.vkDescAllocator;
var descSets = try std.ArrayList(vulkan.DescriptorSet).initCapacity(allocator, 1);
defer descSets.deinit(allocator);
try descSets.append(allocator, vkDescAllocator.getDescSet(DESC_ID_LIGHT_TEXT_SAMPLER).?.descSet);
device.cmdBindDescriptorSets(
cmdHandle,
vulkan.PipelineBindPoint.graphics,
self.vkPipeline.pipelineLayout,
0,
@as(u32, @intCast(descSets.items.len)),
descSets.items.ptr,
0,
null,
);
device.cmdDraw(cmdHandle, 3, 1, 0, 0);
device.cmdEndRendering(cmdHandle);
self.renderFinish(vkCtx, cmdHandle);
}
...
};We will set the barriers associated to the output attachments used while rendering the scene in the renderInit function. After that we just set up the view port and the scissor and just draw a quad as in the post processing stage. We bind the descriptor sets linked to the output attachments used in the geometry phase so we can sample them. As you can see it is quite similar to what we did in the post processing phase. In the renderInit function we need to transition the layout of the image used as an output to the color_attachment_optimal layout once the previous commands have finished.
pub const RenderLight = struct {
...
fn renderInit(
self: *RenderLight,
vkCtx: *const vk.ctx.VkCtx,
cmdHandle: vulkan.CommandBuffer,
) void {
const initBarriers = [_]vulkan.ImageMemoryBarrier2{.{
.old_layout = vulkan.ImageLayout.undefined,
.new_layout = vulkan.ImageLayout.color_attachment_optimal,
.src_stage_mask = .{ .color_attachment_output_bit = true },
.dst_stage_mask = .{ .color_attachment_output_bit = true },
.src_access_mask = .{},
.dst_access_mask = .{ .color_attachment_write_bit = true },
.src_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.dst_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.subresource_range = .{
.aspect_mask = .{ .color_bit = true },
.base_mip_level = 0,
.level_count = vulkan.REMAINING_MIP_LEVELS,
.base_array_layer = 0,
.layer_count = vulkan.REMAINING_ARRAY_LAYERS,
},
.image = @enumFromInt(@intFromPtr(self.outputAtt.vkImage.image)),
}};
const initDepInfo = vulkan.DependencyInfo{
.image_memory_barrier_count = initBarriers.len,
.p_image_memory_barriers = &initBarriers,
};
vkCtx.vkDevice.deviceProxy.cmdPipelineBarrier2(cmdHandle, &initDepInfo);
}
...
};The renderFinish function jus transitions the output attachment to the shader_read_only_optimal layout so it can be sampled in next phases:
pub const RenderLight = struct {
...
fn renderFinish(
self: *RenderLight,
vkCtx: *const vk.ctx.VkCtx,
cmdHandle: vulkan.CommandBuffer,
) void {
const initBarriers = [_]vulkan.ImageMemoryBarrier2{.{
.old_layout = vulkan.ImageLayout.color_attachment_optimal,
.new_layout = vulkan.ImageLayout.shader_read_only_optimal,
.src_stage_mask = .{ .color_attachment_output_bit = true },
.dst_stage_mask = .{ .fragment_shader_bit = true },
.src_access_mask = .{ .color_attachment_write_bit = true },
.dst_access_mask = .{ .shader_read_bit = true },
.src_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.dst_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.subresource_range = .{
.aspect_mask = .{ .color_bit = true },
.base_mip_level = 0,
.level_count = vulkan.REMAINING_MIP_LEVELS,
.base_array_layer = 0,
.layer_count = vulkan.REMAINING_ARRAY_LAYERS,
},
.image = @enumFromInt(@intFromPtr(self.outputAtt.vkImage.image)),
}};
const initDepInfo = vulkan.DependencyInfo{
.image_memory_barrier_count = initBarriers.len,
.p_image_memory_barriers = &initBarriers,
};
vkCtx.vkDevice.deviceProxy.cmdPipelineBarrier2(cmdHandle, &initDepInfo);
}
...
};We also define a resize function:
pub const RenderLight = struct {
...
pub fn resize(self: *RenderLight, vkCtx: *const vk.ctx.VkCtx, engCtx: *const eng.engine.EngCtx, inputAttachments: *const []eng.rend.Attachment) !void {
const allocator = engCtx.allocator;
self.outputAtt.cleanup(vkCtx);
const outputAtt = try createColorAttachment(vkCtx);
const imageViews = try allocator.alloc(vk.imv.VkImageView, inputAttachments.len);
defer allocator.free(imageViews);
for (0..inputAttachments.len) |i| {
imageViews[i] = inputAttachments.ptr[i].vkImageView;
}
const vkDescSetTxt = vkCtx.vkDescAllocator.getDescSet(DESC_ID_LIGHT_TEXT_SAMPLER).?;
try vkDescSetTxt.setImages(allocator, vkCtx.vkDevice, imageViews, self.textSampler, 0);
self.outputAtt = outputAtt;
}
};The setImages function of the VkDesSet function is defined like this:
pub const VkDesSet = struct {
...
pub fn setImages(
self: *const VkDesSet,
allocator: std.mem.Allocator,
vkDevice: vk.dev.VkDevice,
vkImageViews: []vk.imv.VkImageView,
vkTextSampler: vk.text.VkTextSampler,
binding: u32,
) !void {
const imageInfos = try allocator.alloc(vulkan.DescriptorImageInfo, vkImageViews.len);
defer allocator.free(imageInfos);
const writeDesSets = try allocator.alloc(vulkan.WriteDescriptorSet, vkImageViews.len);
defer allocator.free(writeDesSets);
const bufferInfo = [_]vulkan.DescriptorBufferInfo{};
const texelBufferView = [_]vulkan.BufferView{};
for (vkImageViews, 0..) |vkImageView, i| {
const imageInfo = vulkan.DescriptorImageInfo{
.image_layout = vulkan.ImageLayout.shader_read_only_optimal,
.image_view = vkImageView.view,
.sampler = vkTextSampler.sampler,
};
imageInfos[i] = imageInfo;
writeDesSets[i] = vulkan.WriteDescriptorSet{
.dst_set = self.descSet,
.descriptor_count = 1,
.dst_binding = binding + @as(u32, @intCast(i)),
.descriptor_type = vulkan.DescriptorType.combined_image_sampler,
.p_buffer_info = &bufferInfo,
.p_image_info = imageInfos[i .. i + 1].ptr,
.p_texel_buffer_view = &texelBufferView,
.dst_array_element = 0,
};
}
vkDevice.deviceProxy.updateDescriptorSets(@as(u32, @intCast(writeDesSets.len)), writeDesSets.ptr, 0, null);
}
...
};It is similar to the setImagesArr, but in this case, each image has a specific layout.
It is now the turn to view the shaders used in the lighting phase, this is the vertex shader (light_vtx.glsl):
#version 450
layout(location = 0) out vec2 outTextCoord;
void main()
{
outTextCoord = vec2((gl_VertexIndex << 1) & 2, gl_VertexIndex & 2);
gl_Position = vec4(outTextCoord.x * 2.0f - 1.0f, outTextCoord.y * - 2.0f + 1.0f, 0.0f, 1.0f);
}You can see that it is identical as the one used in the post processing phase. The fragment shader (light_frg.glsl) is defined like this:
#version 450
layout(location = 0) in vec2 inTextCoord;
layout(location = 0) out vec4 outFragColor;
layout(set = 0, binding = 0) uniform sampler2D albedoSampler;
layout(set = 0, binding = 1) uniform sampler2D depthSampler;
void main() {
outFragColor = vec4(texture(albedoSampler, inTextCoord).rgb, 1.0);
}By now we will not apply lighting, we will just return the albedo color associated to the current coordinates sampling the attachment that contains albedo information.
The next step is to update the Render struct to use the new RenderLight struct:
pub const Render = struct {
...
renderLight: eng.rlgt.RenderLight,
...
pub fn cleanup(self: *Render, allocator: std.mem.Allocator) !void {
...
self.renderLight.cleanup(&self.vkCtx);
...
}
...
pub fn create(allocator: std.mem.Allocator, constants: com.common.Constants, window: sdl3.video.Window) !Render {
...
const queueGraphics = vk.queue.VkQueue.create(&vkCtx, vkCtx.vkPhysDevice.queuesInfo.graphics_family);
const queuePresent = vk.queue.VkQueue.create(&vkCtx, vkCtx.vkPhysDevice.queuesInfo.present_family);
const renderGui = try eng.rgui.RenderGui.create(allocator, &vkCtx);
const renderScn = try eng.rscn.RenderScn.create(allocator, &vkCtx);
const renderLight = try eng.rlgt.RenderLight.create(allocator, &vkCtx, &renderScn.attachments);
const renderPost = try eng.rpst.RenderPost.create(allocator, &vkCtx, constants, &renderLight.outputAtt);
...
return .{
.vkCtx = vkCtx,
.cmdPools = cmdPools,
.cmdBuffs = cmdBuffs,
.currentFrame = 0,
.fences = fences,
.materialsCache = materialsCache,
.modelsCache = modelsCache,
.mustResize = false,
.queueGraphics = queueGraphics,
.queuePresent = queuePresent,
.renderGui = renderGui,
.renderLight = renderLight,
.renderPost = renderPost,
.renderScn = renderScn,
.semsPresComplete = semsPresComplete,
.semsRenderComplete = semsRenderComplete,
.textureCache = textureCache,
};
}
...
pub fn render(self: *Render, engCtx: *eng.engine.EngCtx) !void {
...
const imageIndex = res.ok;
try self.renderScn.render(
&self.vkCtx,
engCtx,
vkCmdBuff,
&self.modelsCache,
&self.materialsCache,
self.currentFrame,
);
try self.renderLight.render(
&self.vkCtx,
engCtx,
vkCmdBuff,
);
...
}
...
fn resize(self: *Render, engCtx: *eng.engine.EngCtx) !void {
...
try self.renderLight.resize(&self.vkCtx, engCtx, &self.renderScn.attachments);
try self.renderPost.resize(&self.vkCtx, &self.renderLight.outputAtt);
...
}
...
};We have removed:
- The
COLOR_ATTACHMENT_FORMATconstant. - The
attColorattribute. - The
createColorAttachmentfunction: - The
renderMainInitandrenderMainFinishfunctions.
Finally, we need to update the other render structs to adapt to the changes in the pipeline creation:
pub const RenderGui = struct {
...
pub fn create(allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx) !RenderGui {
...
// Pipeline
const colorFormats = [_]vulkan.Format{vkCtx.vkSwapChain.surfaceFormat.format};
const vkPipelineCreateInfo = vk.pipe.VkPipelineCreateInfo{
.colorFormats = colorFormats[0..],
...
};
...
}
...
};pub const RenderPost = struct {
...
pub fn create(
allocator: std.mem.Allocator,
vkCtx: *vk.ctx.VkCtx,
constants: com.common.Constants,
attColor: *const eng.rend.Attachment,
) !RenderPost {
...
// Pipeline
const colorFormats = [_]vulkan.Format{vkCtx.vkSwapChain.surfaceFormat.format};
const vkPipelineCreateInfo = vk.pipe.VkPipelineCreateInfo{
.colorFormats = colorFormats[0..],
...
};
...
}
...
};In the init function in the main.zig file we just remove sound effects code. You need to remove these lines:
try engCtx.soundMgr.addSound("music", "res/sounds/music.mp3");
try engCtx.soundMgr.play("music");Finally, since we have added two new shaders, we need to update the build.zig file:
pub fn build(b: *std.Build) void {
...
const shaders = [_]Shader{
...
.{ .path = "res/shaders/light_vtx.glsl", .stage = "vertex" },
.{ .path = "res/shaders/light_frg.glsl", .stage = "fragment" },
...
};
...

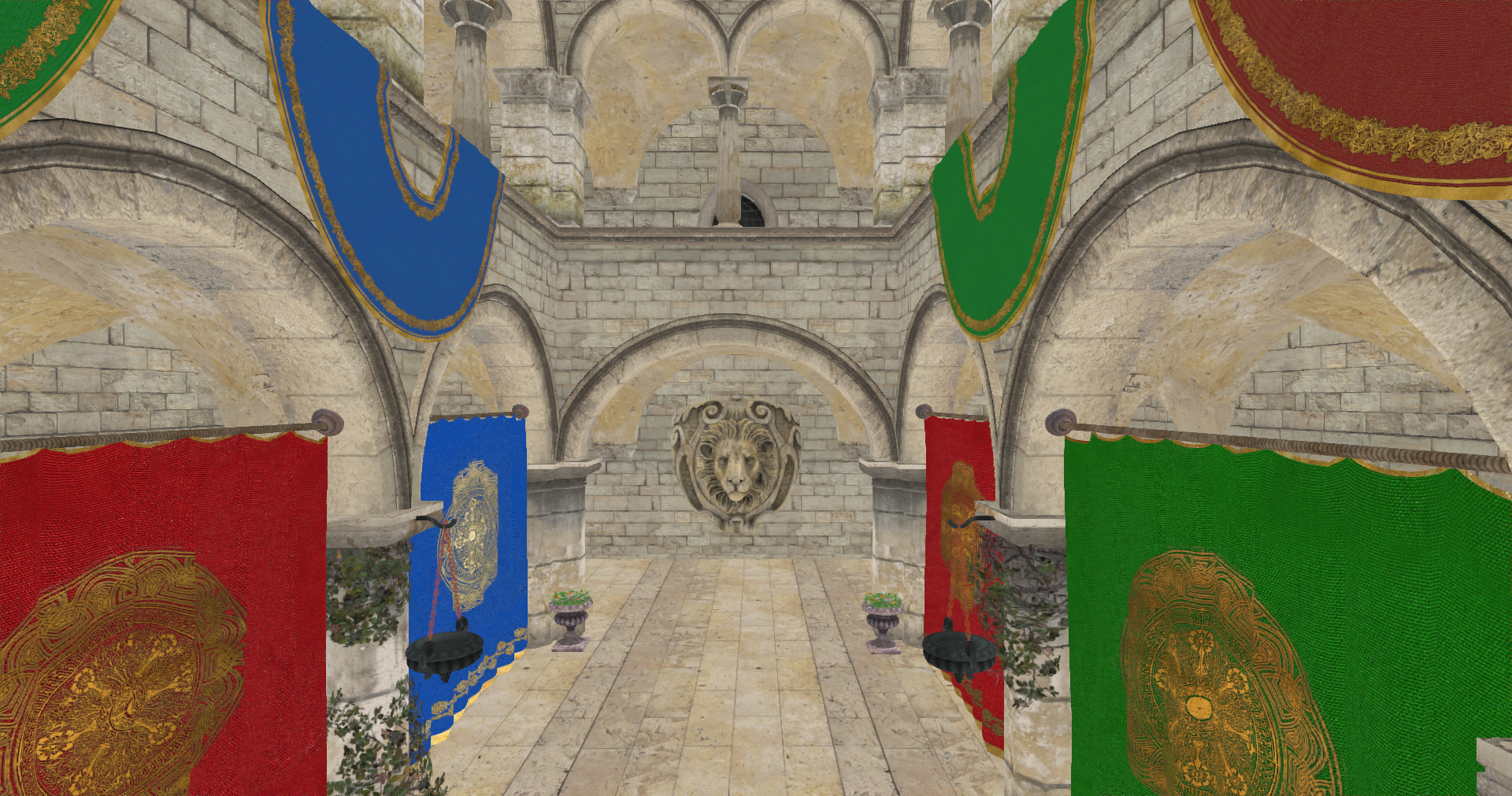

}With all these changes, you will get something like this:
Do not despair, it is exactly the same result as in the previous chapter, you will see in next chapter how we will dramatically improve the visuals. In this chapter we have just set the basis for deferred rendering.
