Chapter 08 - Complex models and textures
In this chapter we will add support for loading complex 3D models which may include textures.
You can find the complete source code for this chapter here.
ZMesh and zstbi
In order to load complex models from disk we will use the ZMesh library. Therefore, you will need to add the dependency to the build.zig.zon using zig fetch --save https://github.com/zig-gamedev/zmesh/archive/a9c23ba7440b8c03cbc2bec89a3285fe84cbb50f.tar.gz.
We will create a new executable to process 3D models (GLTF models in our case). This executable will process a 3D model and will generate the required files to load the model data into Vulkan. Therefore, in the build.zig file we will add the following code at the end:
pub fn build(b: *std.Build) void {
...
const modelGen = b.addExecutable(.{
.name = "model-gen",
.root_module = b.createModule(.{
.root_source_file = b.path("src/eng/modelGen.zig"),
.target = target,
.optimize = optimize,
}),
});
const zmesh = b.dependency("zmesh", .{});
modelGen.root_module.addImport("zmesh", zmesh.module("root"));
modelGen.linkLibrary(zmesh.artifact("zmesh"));
b.installArtifact(modelGen);
}The code for that executable will be located in the src/eng/modelGen.zig file.
Since we will also need to load textures, we will use the Zstbi library. Therefore, you will need to add the dependency to the build-.zig.zon using zig fetch --save https://github.com/zig-gamedev/zstbi/archive/664305dd52640be15cbebd7cd73d1199679933e1.tar.gz.
In the build.zig file we need to define the zstbi dependency and add it to the eng and the root modules:
pub fn build(b: *std.Build) void {
...
// zstbi
const zstbiDep = b.dependency("zstbi", .{});
const zstbi = zstbiDep.module("root");
...
eng.addImport("zstbi", zstbi);
...
exe.root_module.addImport("zstbi", zstbi);
...
}In order to load complex 3D models, we will develop a pre-processing stage to transform models using zmesh into an intermediate format which will be ready to be loaded into the GPU. We will create a new struct that loads these models, process them using zmesh and ump the results to a JSON file. It is a little bit overkill for a tutorial like this, but it will prevent you to process models again and again and will simplify the loading process at the end. The main function defined in the modelGen.zig file starts like this (you can skip this part if you are not interested in preprocessing the models):
pub fn main() !void {
var gpa = std.heap.GeneralPurposeAllocator(.{}){};
var arena = std.heap.ArenaAllocator.init(gpa.allocator());
const allocator = arena.allocator();
defer arena.deinit();
const args = try std.process.argsAlloc(allocator);
defer std.process.argsFree(allocator, args);
if (args.len < 3 or !std.mem.eql(u8, args[1], "-m")) {
printHelp();
return;
}
...
}The function expects to receive as a command line argument the path to the model preceded by the "-m" flag. After that we will get the base directory of the model (used to construct other paths later on) and assign the model identifier using the file name. Then we initialize the zmesh library and load the GLTF file by calling the function parseAndLoadFile.
pub fn main() !void {
...
const modelPath = args[2];
const baseDir = try normalizePath(allocator, std.fs.path.dirname(modelPath) orelse ".");
const baseName = std.fs.path.basename(modelPath);
const modelId = std.fs.path.stem(baseName);
var dir = try std.fs.cwd().openDir(baseDir, .{});
defer dir.close();
zmesh.init(allocator);
defer zmesh.deinit();
const data = try zmesh.io.zcgltf.parseAndLoadFile(modelPath);
defer zmesh.io.zcgltf.freeData(data);
...
}Then we process the materials defined in the model:
pub fn main() !void {
...
var materialList = std.ArrayListUnmanaged(eng.mdata.MaterialData){};
defer materialList.deinit(allocator);
if (data.materials_count > 0 and data.materials != null) {
const materials = data.materials.?[0..data.materials_count];
for (materials, 0..) |material, i| {
const materialData = try processMaterial(allocator, &material, baseDir, modelId, i);
try materialList.append(allocator, materialData);
}
}
...
}We just iterate over the model materials and call the processMaterial which will return a MaterialData instance which stored in a list. The MaterialData is defined in a struct like this (in the src/eng/modelData.zig file):
pub const MaterialData = struct {
id: []const u8,
texturePath: []const u8,
color: [4]f32,
};It just contains an identifier the path to a texture (for the albedo color by now if available) and a color (for the albedo also). Let's continue with the main function code:
pub fn main() !void {
...
// Create indices file
const idxFileName = try std.fmt.allocPrint(allocator, "{s}.idx", .{modelId});
const idxFile = try dir.createFile(idxFileName, .{ .truncate = true });
defer idxFile.close();
// Create vertices file
const vtxFileName = try std.fmt.allocPrint(allocator, "{s}.vtx", .{modelId});
const vtxFile = try dir.createFile(vtxFileName, .{ .truncate = true });
defer vtxFile.close();
...
}We will create two files, one that will store vertices data and the other that will store the indices. These files will store data for all the meshes. Let's continue with the code.
pub fn main() !void {
...
var meshDataList = std.ArrayListUnmanaged(eng.mdata.MeshData){};
defer meshDataList.deinit(allocator);
const defText = [_]f32{ 0.0, 0.0 };
var idxOffset: usize = 0;
var vtxOffset: usize = 0;
if (data.meshes_count == 0 or data.meshes == null) {
std.debug.print("No meshes found\n", .{});
return;
}
const meshes = data.meshes.?[0..data.meshes_count];
for (meshes, 0..) |mesh, meshIdx| {
for (mesh.primitives, 0..mesh.primitives_count) |primitive, primIdx| {
var meshIntData = try processMesh(
allocator,
data,
&primitive,
@as(u32, @intCast(meshIdx)),
@as(u32, @intCast(primIdx)),
materialList,
);
defer meshIntData.cleanup(allocator);
// Dump to indices file
try idxFile.writeAll(std.mem.sliceAsBytes(meshIntData.indices.items));
// Dump to vertices file
for (meshIntData.positions.items, 0..) |_, idx| {
try vtxFile.writeAll(std.mem.sliceAsBytes(std.mem.asBytes(&meshIntData.positions.items[idx])));
if (idx < meshIntData.texcoords.items.len) {
try vtxFile.writeAll(std.mem.sliceAsBytes(std.mem.asBytes(&meshIntData.texcoords.items[idx])));
} else {
try vtxFile.writeAll(std.mem.sliceAsBytes(std.mem.asBytes(&defText)));
}
}
const numIndices = meshIntData.indices.items.len;
// There can be models with no texture coords, but we fill up with empty coords
const numFloats = meshIntData.positions.items.len * 3 + meshIntData.texcoords.items.len * 2;
const meshData = eng.mdata.MeshData{
.id = meshIntData.id,
.materialId = meshIntData.materialId,
.idxOffset = idxOffset,
.idxSize = numIndices * @sizeOf(u32),
.vtxOffset = vtxOffset,
.vtxSize = numFloats * @sizeOf(f32),
};
try meshDataList.append(allocator, meshData);
idxOffset += meshData.idxSize;
vtxOffset += meshData.vtxSize;
}
}
...
}After that, we get the meshes and their primitives. In GLTF a model is composed by meshes and a meshes is composed by primitives. In our case we will assimilate primitive as meshes in our engines. GLTF primitives will define the vertices, texture coordinates, indices and will be associated to materials, so, from our point of view are the meshes. Each primitive will be processed in the processMesh function and added to a list as a MeshIntData struct. This struct is defined in the beginning of the file as:
const MeshIntData = struct {
id: []const u8,
materialId: []const u8,
indices: std.ArrayListUnmanaged(u32),
positions: std.ArrayListUnmanaged([3]f32),
texcoords: std.ArrayListUnmanaged([2]f32),
pub fn cleanup(self: *MeshIntData, allocator: std.mem.Allocator) void {
self.indices.deinit(allocator);
self.positions.deinit(allocator);
self.texcoords.deinit(allocator);
}
};It stores the mesh identifier (id), the identifier of the material associated to it (materialId), the indices, positions and texture coordinates. We need this interim structs (that is what Int means) to store the data for the vertices and the indices. We will dump that that to the binary files associated to the model and will not need them in the eng.mdata.MeshData struct, which will be the one used in the engine. In the eng.mdata.MeshData struct we will just store the offsets inside those binary files for the vertices and indices data (Remember that this struct is stored in the src/eng/modelData.zig file):
pub const MeshData = struct {
id: []const u8,
materialId: []const u8,
idxOffset: usize,
idxSize: usize,
vtxOffset: usize,
vtxSize: usize,
};Therefore, after we have dumped the data we just transform from MeshIntData to MeshData, store in the mesh lists and update the vertices and indices offsets accordingly. You may have noticed that we check if the number of texture coordinates match the number of positions. If we have more positions than texture coordinates we just fill up with zeroes.
Going back to the main function:
pub fn main() !void {
...
// Dump materials file
var writerMaterials = std.Io.Writer.Allocating.init(allocator);
var jsonMat = std.json.Stringify{
.writer = &writerMaterials.writer,
.options = .{
.whitespace = .indent_2,
.emit_null_optional_fields = true,
.escape_unicode = false,
.emit_nonportable_numbers_as_strings = false,
},
};
const fileMaterialsName = try std.fmt.allocPrint(allocator, "{s}-mat.json", .{modelId});
try jsonMat.write(materialList);
const fileMaterials = try dir.createFile(fileMaterialsName, .{ .truncate = true });
defer fileMaterials.close();
try fileMaterials.writeAll(writerMaterials.written());
std.debug.print("Dumped materials [{s}]\n", .{fileMaterialsName});
...
}Now it is the turn to dump materials information to a JSON file. We will just dump the list of materials using Zig's builtin JSON support. After that, we will build the model information:
pub fn main() !void {
...
// Build model data
const idxRelPath = try std.fmt.allocPrint(allocator, "{s}/{s}", .{ baseDir, idxFileName });
const vtxRelPath = try std.fmt.allocPrint(allocator, "{s}/{s}", .{ baseDir, vtxFileName });
const modelData = eng.mdata.ModelData{
.id = modelId,
.meshes = meshDataList,
.idxFilename = idxRelPath,
.vtxFilename = vtxRelPath,
};
...
}The model data struct has been updated store the path to the vertices and indices files. You will need to modify the struct as follows (Remember that this struct is stored in the src/eng/modelData.zig file):
pub const ModelData = struct {
id: []const u8,
meshes: std.ArrayListUnmanaged(MeshData),
idxFilename: []const u8,
vtxFilename: []const u8,
pub fn cleanup(self: *const ModelData, allocator: std.mem.Allocator) void {
allocator.free(self.id);
allocator.free(self.idxFilename);
allocator.free(self.vtxFilename);
for (self.meshes.items) |*meshData| {
allocator.free(meshData.id);
allocator.free(meshData.materialId);
}
}
};After that, going back to the main function, we will just dump model information to a JSON file:
Let's review the processMaterial function:
pub fn main() !void {
...
// Dump model file
var writerModel = std.Io.Writer.Allocating.init(allocator);
defer writerModel.deinit();
var jsonModel = std.json.Stringify{
.writer = &writerModel.writer,
.options = .{
.whitespace = .indent_2,
.emit_null_optional_fields = true,
.escape_unicode = false,
.emit_nonportable_numbers_as_strings = false,
},
};
const fileModelName = try std.fmt.allocPrint(allocator, "{s}.json", .{modelId});
try jsonModel.write(modelData);
const fileModel = try dir.createFile(fileModelName, .{ .truncate = true });
defer fileModel.close();
try fileModel.writeAll(writerModel.written());
std.debug.print("Dumped model [{s}]\n", .{fileModelName});
}That's all. Let's review now the missing functions used in main. The first one, normalizePath, just modifies path strings to use / as path separator:
pub fn normalizePath(allocator: std.mem.Allocator, input_path: []const u8) ![]const u8 {
var result = try allocator.alloc(u8, input_path.len);
for (input_path, 0..) |c, i| {
result[i] = if (c == '\\') '/' else c;
}
return result;
}The next function is the processMaterial one:
fn processMaterial(
allocator: std.mem.Allocator,
material: *const zmesh.io.zcgltf.Material,
baseDir: []const u8,
modelId: []const u8,
pos: usize,
) !eng.mdata.MaterialData {
var color = [_]f32{ 0.0, 0.0, 0.0, 0.0 };
var texturePath: [*:0]const u8 = "";
if (material.has_pbr_metallic_roughness > 0) {
if (material.pbr_metallic_roughness.base_color_texture.texture) |texture| {
texturePath = texture.image.?.uri.?;
}
color = material.pbr_metallic_roughness.base_color_factor;
}
const textRelPath = if (texturePath[0] != 0) try std.fmt.allocPrint(allocator, "{s}/{s}", .{ baseDir, std.mem.span(texturePath) }) else "";
const materialId = try std.fmt.allocPrint(allocator, "{s}-mat-{d}", .{ modelId, pos });
return eng.mdata.MaterialData{
.id = materialId,
.texturePath = textRelPath,
.color = color,
};
}This functions is executed for each of the materials found in the model file. First we retrieve the diffuse texture path (if present) and then, the diffuse color accesing zmesh.io.zcgltf.Material's pbr_metallic_roughness attribute. We just dump that information into a eng.mdata.MaterialData instance and return it. We will not be supporting embedded textures (textures contained inside the GLTF file) by now.
The next function is the processMesh one, which processes GLTF primitives and converts them to MeshIntData instances:
fn processMesh(
allocator: std.mem.Allocator,
data: *zmesh.io.zcgltf.Data,
primitive: *const zmesh.io.zcgltf.Primitive,
meshIdx: u32,
primIdx: u32,
materialList: std.ArrayListUnmanaged(eng.mdata.MaterialData),
) !MeshIntData {
const id = try std.fmt.allocPrint(allocator, "mesh-{d}-{d}", .{ meshIdx, primIdx });
var indices = std.ArrayListUnmanaged(u32){};
var positions = std.ArrayListUnmanaged([3]f32){};
var texcoords = std.ArrayListUnmanaged([2]f32){};
var materialId: []const u8 = "";
if (primitive.material) |material| {
const idx = materialIndexFromPtr(data, material);
materialId = materialList.items[idx].id;
}
try zmesh.io.zcgltf.appendMeshPrimitive(
allocator,
data,
meshIdx,
@as(u32, @intCast(primIdx)),
&indices,
&positions,
null,
&texcoords,
null,
);
return MeshIntData{
.id = id,
.materialId = materialId,
.indices = indices,
.positions = positions,
.texcoords = texcoords,
};
}This function extracts indices, positions and texture coordinates from a GLTF primitive by calling the appendMeshPrimitive. It also associates the mes with its material. Each primitive will have a pointer to the associated material the vertices, we need to get the index of that material in the list that we constructed previously taking that pointer as a input. This what the materialIndexFromPtr function does:
fn materialIndexFromPtr(
data: *const zmesh.io.zcgltf.Data,
mat: *const zmesh.io.zcgltf.Material,
) usize {
const base = @intFromPtr(data.materials.?);
const ptr = @intFromPtr(mat);
return (ptr - base) / @sizeOf(zmesh.io.zcgltf.Material);
}All the materials pointers are basically an offset over the base pointer which address the materials list, so subtracting the material pointer form the base pointer we basically get an offset in bytes which we can divided by the zmesh.io.zcgltf.Material size to get an index.
Finally the last function just prints some help text if the wrong number of arguments have been passed to the model generation executable:
fn printHelp() void {
std.debug.print(
\\Usage: model-gen [OPTIONS]
\\
\\Options:
\\ -m FILE Path to the model file
\\
, .{});
}Textures
We have already created the structs that support images and image views, however, we need to be able to load texture context from image files and to properly copy its contents to a buffer setting up the adequate layout. We will create a new struct named VkTexture to support this. It will be included in a new file under src/eng/vk/vkTexture file. You will need to include in the mod.zig file: pub const text = @import("vkTexture.zig");. In order to create textures we will a helper struct that will hold relevant information for texture creation. It will be named VkTextureInfo (defined in the same file):
pub const VkTextureInfo = struct {
data: []const u8,
width: u32,
height: u32,
format: vulkan.Format,
};It will store the texture data, its dimensions and the format of the image data. We will review now the VkTexture struct which starts like this:
pub const VkTexture = struct {
vkImage: vk.img.VkImage,
vkImageView: vk.imv.VkImageView,
vkStageBuffer: ?vk.buf.VkBuffer,
width: u32,
height: u32,
recorded: bool = false,
pub fn create(vkCtx: *const vk.ctx.VkCtx, vkTextureInfo: *const VkTextureInfo) !VkTexture {
const flags = vulkan.ImageUsageFlags{
.transfer_dst_bit = true,
.sampled_bit = true,
};
const vkImageData = vk.img.VkImageData{
.width = vkTextureInfo.width,
.height = vkTextureInfo.height,
.usage = flags,
.format = vkTextureInfo.format,
};
const vkImage = try vk.img.VkImage.create(vkCtx, vkImageData);
const imageViewData = vk.imv.VkImageViewData{ .format = vkTextureInfo.format };
const vkImageView = try vk.imv.VkImageView.create(vkCtx.vkDevice, vkImage.image, imageViewData);
const dataSize = vkTextureInfo.data.len;
const vkStageBuffer = try vk.buf.VkBuffer.create(
vkCtx,
dataSize,
.{ .transfer_src_bit = true },
.{ .host_visible_bit = true, .host_coherent_bit = true },
);
try vk.buf.copyDataToBuffer(vkCtx, &vkStageBuffer, &vkTextureInfo.data);
return .{
.vkImage = vkImage,
.vkImageView = vkImageView,
.vkStageBuffer = vkStageBuffer,
.width = vkTextureInfo.width,
.height = vkTextureInfo.height,
};
}
...
};The create function will create new instances of VkTexture structs and will receive, in addition of the Vulkan the context, an instance of the vkTextureInfo struct that will hold all the required data. It creates first an image and image view and then a staging buffer which is CPU accessible to copy image contents.It is interesting to review the usage flags we are using in in this case:
transfer_dst_bit(VK_IMAGE_USAGE_TRANSFER_DST_BIT): The image can be used as a destination of a transfer command. We need this, because in our case, we will copy from a staging buffer to the image.sampled_bit(VK_IMAGE_USAGE_SAMPLED_BIT): The image can be used to occupy a descriptor set (more on this later). In our case, the image needs to be used by a sampler in a fragment shader, so we need to set this flag.
The recorded attribute will control if a texture has been recorded (transitioned to ist final layout) or not.
At the end of the create function we just copy the image data to the staging buffer associated to the image by calling a function that is located in the vkBuffer.zig:
pub fn copyDataToBuffer(vkCtx: *const vk.ctx.VkCtx, vkBuffer: *const VkBuffer, data: *const []const u8) !void {
const buffData = try vkBuffer.map(vkCtx);
defer vkBuffer.unMap(vkCtx);
const gpuBytes: [*]u8 = @ptrCast(buffData);
@memcpy(gpuBytes[0..data.len], data.ptr);
}The VkTexture struct defines a cleanup function to free the resources and a specific cleanupStgBuffer to clean the staging buffer (this should be called when the texture transition recording has been finished):
pub const VkTexture = struct {
...
pub fn cleanup(self: *VkTexture, vkCtx: *const vk.ctx.VkCtx) void {
self.cleanupStgBuffer(vkCtx);
self.vkImageView.cleanup(vkCtx.vkDevice);
self.vkImage.cleanup(vkCtx);
}
pub fn cleanupStgBuffer(self: *VkTexture, vkCtx: *const vk.ctx.VkCtx) void {
if (self.vkStageBuffer) |sb| {
sb.cleanup(vkCtx);
}
self.vkStageBuffer = null;
}
...
};In order for Vulkan to correctly use the image, we need to perform the following steps:
- We need to set the image into
transfer_dst_optimal(VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL) layout to be ready to be in transfer state so we can copy the contents of the buffer. - Record a copy operation from the buffer to the image.
- Set the image into
shader_read_only_optimal(VK_IMAGE_LAYOUT_SHADER_READ_ONLY_OPTIMAL) so it can be used in shaders.
We will do all of these operations by recording image memory barriers and copy operations inside a command buffer in a function called recordTransition, which is defined like this:
pub const VkTexture = struct {
...
pub fn recordTransition(self: *VkTexture, vkCtx: *const vk.ctx.VkCtx, cmdHandle: vulkan.CommandBuffer) void {
if (self.recorded) {
return;
}
// Record transition to dst optimal
const device = vkCtx.vkDevice.deviceProxy;
const initBarriers = [_]vulkan.ImageMemoryBarrier2{.{
.old_layout = vulkan.ImageLayout.undefined,
.new_layout = vulkan.ImageLayout.transfer_dst_optimal,
.src_stage_mask = .{ .top_of_pipe_bit = true },
.dst_stage_mask = .{ .all_transfer_bit = true },
.src_access_mask = .{},
.dst_access_mask = .{ .transfer_write_bit = true },
.src_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.dst_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.subresource_range = .{
.aspect_mask = .{ .color_bit = true },
.base_mip_level = 0,
.level_count = vulkan.REMAINING_MIP_LEVELS,
.base_array_layer = 0,
.layer_count = vulkan.REMAINING_ARRAY_LAYERS,
},
.image = self.vkImage.image,
}};
const initDepInfo = vulkan.DependencyInfo{
.image_memory_barrier_count = initBarriers.len,
.p_image_memory_barriers = &initBarriers,
};
device.cmdPipelineBarrier2(cmdHandle, &initDepInfo);
// Record copy
const region = [_]vulkan.BufferImageCopy{.{
.buffer_offset = 0,
.buffer_row_length = 0,
.buffer_image_height = 0,
.image_subresource = .{
.aspect_mask = vulkan.ImageAspectFlags{ .color_bit = true },
.mip_level = 0,
.base_array_layer = 0,
.layer_count = 1,
},
.image_offset = .{
.x = 0,
.y = 0,
.z = 0,
},
.image_extent = .{
.width = self.vkImage.width,
.height = self.vkImage.height,
.depth = 1,
},
}};
device.cmdCopyBufferToImage(
cmdHandle,
self.vkStageBuffer.?.buffer,
self.vkImage.image,
vulkan.ImageLayout.transfer_dst_optimal,
region.len,
®ion,
);
// Record transition to src optimal
const endBarriers = [_]vulkan.ImageMemoryBarrier2{.{
.old_layout = vulkan.ImageLayout.transfer_dst_optimal,
.new_layout = vulkan.ImageLayout.shader_read_only_optimal,
.src_stage_mask = .{ .all_transfer_bit = true },
.dst_stage_mask = .{ .fragment_shader_bit = true },
.src_access_mask = .{ .transfer_write_bit = true },
.dst_access_mask = .{ .shader_read_bit = true },
.src_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.dst_queue_family_index = vulkan.QUEUE_FAMILY_IGNORED,
.subresource_range = .{
.aspect_mask = .{ .color_bit = true },
.base_mip_level = 0,
.level_count = vulkan.REMAINING_MIP_LEVELS,
.base_array_layer = 0,
.layer_count = vulkan.REMAINING_ARRAY_LAYERS,
},
.image = self.vkImage.image,
}};
const endDepInfo = vulkan.DependencyInfo{
.image_memory_barrier_count = endBarriers.len,
.p_image_memory_barriers = &endBarriers,
};
device.cmdPipelineBarrier2(cmdHandle, &endDepInfo);
self.recorded = true;
}
};This function first records the transition of the image layout to one where we can copy the staging buffer contents. That is, we transition from vulkan.ImageLayout.undefined (VK_IMAGE_LAYOUT_UNDEFINED) to vulkan.ImageLayout.transfer_dst_optimal (VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL) layout by setting an image memory barrier. After that, it records the commands to copy the staging buffer contents to the image. It first defines the region to copy (in this case the whole image size) and calls the cmdCopyBufferToImage function. Finally, we record the commands to transition the layout from vulkan.ImageLayout.transfer_dst_optimal (VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL) to vulkan.ImageLayout.shader_read_only_optimal (VK_IMAGE_LAYOUT_SHADER_READ_ONLY_OPTIMAL) by setting again an image memory barrier. The texture will be used in a shader, no one will be writing to it after we have finished with the staging buffer, therefore, the vulkan.ImageLayout.shader_read_only_optimal is the appropriate state.
An important issue to highlight is that we are recording commands that can be submitted to a queue. In this way, we can group the commands associated to several textures and submit them using a single call, instead of going one by one. This should reduce the loading time when dealing with several textures.
Now that the VkTexture struct is complete, we are ready to use it. In 3D models, it is common that multiple meshes share the same texture file, we want to control that to avoid loading the same resource multiple times. We will create a new struct named TextureCache to control this:
const com = @import("com");
const std = @import("std");
const vk = @import("vk");
const vulkan = @import("vulkan");
const zstbi = @import("zstbi");
const log = std.log.scoped(.eng);
pub const MAX_TEXTURES: u32 = 100;
pub const TextureInfo = struct {
id: []const u8,
data: []const u8,
width: u32,
height: u32,
format: vulkan.Format,
};
pub const EMPTY_PIXELS = [_]u8{ 0, 0, 0, 0 };
pub const TextureCache = struct {
textureMap: std.ArrayHashMap([]const u8, vk.text.VkTexture, std.array_hash_map.StringContext, false),
...
pub fn create(allocator: std.mem.Allocator) TextureCache {
const textureMap = std.ArrayHashMap([]const u8, vk.text.VkTexture, std.array_hash_map.StringContext, false).init(allocator);
return .{ .textureMap = textureMap };
}
...
};This struct will store in a ArrayHashMap the textures indexed by the path to the file use to load them. The reason for this structure is to be able to recover the texture by its identifier (like in a StringHashMap) while maintaining the insertion order. Although by now, we will be accessing by identifier, later on we will need to get the textures by the position they were loaded.
The TextureCache struct defines a function to add a VkTexture named addTexture. That function receives a TextureInfo struct with all the information required to create a VkTexture and will check if the texture has been already added to the cache, to avoid creating multiple textures for the same data. If it does not exists it will just instantiate a new VkTexture and store it in the cache. We have another variant that receives a path to a texture and another one receiving a TextureInfo will receive the path to the texture image:
pub const TextureCache = struct {
...
pub fn addTexture(self: *TextureCache, allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx, textureInfo: *const TextureInfo) !void {
if (self.textureMap.contains(textureInfo.id)) {
return;
}
if (self.textureMap.count() >= MAX_TEXTURES) {
@panic("Exceeded maximum number of textures");
}
const ownedId = try allocator.dupe(u8, textureInfo.id);
const vkTextureInfo = vk.text.VkTextureInfo{
.data = textureInfo.data,
.width = textureInfo.width,
.height = textureInfo.height,
.format = textureInfo.format,
};
const vkTexture = try vk.text.VkTexture.create(vkCtx, &vkTextureInfo);
try self.textureMap.put(ownedId, vkTexture);
}
pub fn addTextureFromPath(self: *TextureCache, allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx, path: [:0]const u8) !bool {
if (self.textureMap.count() >= MAX_TEXTURES) {
@panic("Exceeded maximum number of textures");
}
std.fs.cwd().access(path, .{}) catch {
log.err("Could not load texture file [{s}]", .{path});
return false;
};
var image = try zstbi.Image.loadFromFile(path, 4);
defer image.deinit();
const textureInfo = TextureInfo{
.id = path,
.data = image.data,
.width = image.width,
.height = image.height,
.format = vulkan.Format.r8g8b8a8_srgb,
};
try self.addTexture(allocator, vkCtx, &textureInfo);
return true;
}
...
};We will add also the classical cleanup function to free the images and a function to get a texture using its identifier.
pub const TextureCache = struct {
...
pub fn cleanup(self: *TextureCache, allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx) void {
var iter = self.textureMap.iterator();
while (iter.next()) |entry| {
allocator.free(entry.key_ptr.*);
const texture = entry.value_ptr;
texture.cleanup(vkCtx);
}
self.textureMap.deinit();
}
pub fn getTexture(self: *const TextureCache, id: []const u8) vk.text.VkTexture {
const texture = self.textureMap.get(id) orelse {
@panic("Could not find texture");
};
return texture;
}
...
};The only missing function is recordTextures which performs layout transitions over all the textures stored in the cache. It is defined like this:
pub const TextureCache = struct {
...
pub fn recordTextures(self: *TextureCache, vkCtx: *const vk.ctx.VkCtx, vkCmdPool: *vk.cmd.VkCmdPool, vkQueue: vk.queue.VkQueue) !void {
const numTextures = self.textureMap.count();
log.debug("Recording [{d}] texture(s)", .{numTextures});
const cmd = try vk.cmd.VkCmdBuff.create(vkCtx, vkCmdPool, true);
defer cmd.cleanup(vkCtx, vkCmdPool);
try cmd.begin(vkCtx);
const cmdHandle = cmd.cmdBuffProxy.handle;
var it1 = self.textureMap.iterator();
while (it1.next()) |entry| {
entry.value_ptr.*.recordTransition(vkCtx, cmdHandle);
}
try cmd.end(vkCtx);
try cmd.submitAndWait(vkCtx, vkQueue);
var it2 = self.textureMap.iterator();
while (it2.next()) |entry| {
entry.value_ptr.*.cleanupStgBuffer(vkCtx);
}
log.debug("Recorded [{d}] texture(s)", .{numTextures});
}
...
};We first create a command buffer, iterate over the textures calling recordTextureTransition and submit the work and wait it to be completed. Using arrays of textures is also the reason why we need to keeping track of the position of each texture is important. This is why we use the ArrayHashMap struct which basically keeps insertion order. After we have finished recording texture transitions and the work has been completed, we can free the staging buffers of all the textures.
In order to generate the identifiers of the "dummy" textures we will create an UUID identifiers so we guarantee that they ar unique. The function generateUuid (defined in the src/eng/com/utils.zig file) is defined like this:
pub fn generateUuid(allocator: std.mem.Allocator) ![]const u8 {
var bytes: [16]u8 = undefined;
std.crypto.random.bytes(&bytes);
// Set version (4) and variant bits (RFC 4122)
bytes[6] = (bytes[6] & 0x0F) | 0x40;
bytes[8] = (bytes[8] & 0x3F) | 0x80;
// Format as UUID string
const hex_chars = "0123456789abcdef";
var uuid = try allocator.alloc(u8, 36);
errdefer allocator.free(uuid);
var i: usize = 0;
for (bytes, 0..) |byte, j| {
switch (j) {
4, 6, 8, 10 => {
uuid[i] = '-';
i += 1;
},
else => {},
}
uuid[i] = hex_chars[byte >> 4];
uuid[i + 1] = hex_chars[byte & 0x0F];
i += 2;
}
return uuid;
}Models and Materials
The next step is to update the VulkanMesh struct to hold a reference to the material identifier it is associated:
pub const VulkanMesh = struct {
buffIdx: vk.buf.VkBuffer,
buffVtx: vk.buf.VkBuffer,
id: []const u8,
materialId: []const u8,
numIndices: usize,
pub fn cleanup(self: *const VulkanMesh, allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx) void {
self.buffVtx.cleanup(vkCtx);
self.buffIdx.cleanup(vkCtx);
allocator.free(self.id);
allocator.free(self.materialId);
}
};We will also add a new VulkanMaterial struct which will just store an identifier by now:
pub const VulkanMaterial = struct {
id: []const u8,
pub fn cleanup(self: *VulkanMaterial, allocator: std.mem.Allocator) void {
allocator.free(self.id);
}
};Let's update now the ModelsCache struct to be able to load preprocessed models. Remember that prior to use any model you need to preprocess it by using the model generator executable. Let's start with the init function:
const com = @import("com");
...
pub const ModelsCache = struct {
...
pub fn init(
self: *ModelsCache,
allocator: std.mem.Allocator,
vkCtx: *const vk.ctx.VkCtx,
cmdPool: *vk.cmd.VkCmdPool,
vkQueue: vk.queue.VkQueue,
initData: *const eng.engine.InitData,
) !void {
log.debug("Loading {d} model(s)", .{initData.models.len});
const cmdBuff = try vk.cmd.VkCmdBuff.create(vkCtx, cmdPool, true);
const cmdHandle = cmdBuff.cmdBuffProxy.handle;
var srcBuffers = try std.ArrayList(vk.buf.VkBuffer).initCapacity(allocator, 1);
defer srcBuffers.deinit(allocator);
try cmdBuff.begin(vkCtx);
for (initData.models) |*modelData| {
const vtxData = try com.utils.loadFile(allocator, modelData.vtxFilename);
defer allocator.free(vtxData);
const idxData = try com.utils.loadFile(allocator, modelData.idxFilename);
defer allocator.free(idxData);
var vulkanMeshes = try std.ArrayList(VulkanMesh).initCapacity(allocator, modelData.meshes.items.len);
for (modelData.meshes.items) |meshData| {
const verticesSize = meshData.vtxSize;
const srcVtxBuffer = try vk.buf.VkBuffer.create(
vkCtx,
verticesSize,
vulkan.BufferUsageFlags{ .transfer_src_bit = true },
vulkan.MemoryPropertyFlags{ .host_visible_bit = true, .host_coherent_bit = true },
);
try srcBuffers.append(allocator, srcVtxBuffer);
const dstVtxBuffer = try vk.buf.VkBuffer.create(
vkCtx,
verticesSize,
vulkan.BufferUsageFlags{ .vertex_buffer_bit = true, .transfer_dst_bit = true },
vulkan.MemoryPropertyFlags{ .device_local_bit = true },
);
const dataVertices = try srcVtxBuffer.map(vkCtx);
const gpuVertices: [*]u8 = @ptrCast(@alignCast(dataVertices));
const endVtx = meshData.vtxOffset + meshData.vtxSize;
@memcpy(gpuVertices, vtxData[meshData.vtxOffset..endVtx]);
srcVtxBuffer.unMap(vkCtx);
const indicesSize = meshData.idxSize;
const srcIdxBuffer = try vk.buf.VkBuffer.create(
vkCtx,
indicesSize,
vulkan.BufferUsageFlags{ .transfer_src_bit = true },
vulkan.MemoryPropertyFlags{ .host_visible_bit = true, .host_coherent_bit = true },
);
try srcBuffers.append(allocator, srcIdxBuffer);
const dstIdxBuffer = try vk.buf.VkBuffer.create(
vkCtx,
indicesSize,
vulkan.BufferUsageFlags{ .index_buffer_bit = true, .transfer_dst_bit = true },
vulkan.MemoryPropertyFlags{ .device_local_bit = true },
);
const dataIndices = try srcIdxBuffer.map(vkCtx);
const gpuIndices: [*]u8 = @ptrCast(@alignCast(dataIndices));
const endIdx = meshData.idxOffset + meshData.idxSize;
@memcpy(gpuIndices, idxData[meshData.idxOffset..endIdx]);
srcIdxBuffer.unMap(vkCtx);
const vulkanMesh = VulkanMesh{
.buffIdx = dstIdxBuffer,
.buffVtx = dstVtxBuffer,
.id = try allocator.dupe(u8, meshData.id),
.materialId = try allocator.dupe(u8, meshData.materialId),
.numIndices = indicesSize / @sizeOf(u32),
};
try vulkanMeshes.append(allocator, vulkanMesh);
recordTransfer(vkCtx, cmdHandle, &srcVtxBuffer, &dstVtxBuffer);
recordTransfer(vkCtx, cmdHandle, &srcIdxBuffer, &dstIdxBuffer);
}
const vulkanModel = VulkanModel{ .id = try allocator.dupe(u8, modelData.id), .meshes = vulkanMeshes };
try self.modelsMap.put(try allocator.dupe(u8, modelData.id), vulkanModel);
}
try cmdBuff.end(vkCtx);
try cmdBuff.submitAndWait(vkCtx, vkQueue);
for (srcBuffers.items) |vkBuff| {
vkBuff.cleanup(vkCtx);
}
log.debug("Loaded {d} model(s)", .{initData.models.len});
}
};We will be loading data for vertices and indices from files, so we need to get the data by calling the com.utils.loadFile functions. Since all the meshes of a model share the same data, we need to take into consideration offset and the end of the mesh data in the vertices and indices.
In order to manage materials we will need to create a new struct named MaterialsCache which starts like this (it will be defined in the same file as ModelsCache: src/eng/modelsCache.zig):
...
const MaterialBuffRecord = struct {
diffuseColor: zm.Vec,
hasTexture: u32,
textureIdx: u32,
padding: [2]u32,
};
...
pub const MaterialsCache = struct {
materialsMap: std.ArrayHashMap([]const u8, VulkanMaterial, std.array_hash_map.StringContext, false),
materialsBuffer: ?vk.buf.VkBuffer,
pub fn cleanup(self: *MaterialsCache, allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx) void {
var iter = self.materialsMap.iterator();
while (iter.next()) |entry| {
entry.value_ptr.cleanup(allocator);
}
self.materialsMap.deinit();
if (self.materialsBuffer) |buff| {
buff.cleanup(vkCtx);
}
}
pub fn create(allocator: std.mem.Allocator) MaterialsCache {
const materialsMap = std.ArrayHashMap([]const u8, VulkanMaterial, std.array_hash_map.StringContext, false).init(allocator);
return .{
.materialsMap = materialsMap,
.materialsBuffer = null,
};
}
...
};This struct, will create a single VkBuffer which will store all the materials information for all the models, which in our case will be:
- The diffuse color (for non textured materials), stored as a vector of 4 elements.
- If the material has a texture associated or not.
- The texture index associated to the material.
We will need to store the materials in an ArrayHashMap since we will need to get he position of the material in the buffer. Now we need a function to load the materials:
pub const MaterialsCache = struct {
...
pub fn init(
self: *MaterialsCache,
allocator: std.mem.Allocator,
vkCtx: *const vk.ctx.VkCtx,
textureCache: *eng.tcach.TextureCache,
cmdPool: *vk.cmd.VkCmdPool,
vkQueue: vk.queue.VkQueue,
initData: *const eng.engine.InitData,
) !void {
// Create a copy an add default material at first position
var materialsList = try std.ArrayList(*eng.mdata.MaterialData).initCapacity(
allocator,
initData.materials.items.len + 1,
);
defer materialsList.deinit(allocator);
var defaultMaterial = eng.mdata.MaterialData{
.color = [_]f32{ 1, 1, 1, 1 },
.id = "DEFAULT_MATERIAL_ID",
.texturePath = "",
};
try materialsList.append(allocator, &defaultMaterial);
for (initData.materials.items) |*materialData| {
try materialsList.append(allocator, materialData);
}
const numMaterials = materialsList.items.len;
log.debug("Loading {d} material(s)", .{numMaterials});
const cmdBuff = try vk.cmd.VkCmdBuff.create(vkCtx, cmdPool, true);
const cmdHandle = cmdBuff.cmdBuffProxy.handle;
const buffSize = numMaterials * @sizeOf(MaterialBuffRecord);
const srcBuffer = try vk.buf.VkBuffer.create(
vkCtx,
buffSize,
vulkan.BufferUsageFlags{ .transfer_src_bit = true },
vulkan.MemoryPropertyFlags{ .host_visible_bit = true },
);
defer srcBuffer.cleanup(vkCtx);
const dstBuffer = try vk.buf.VkBuffer.create(
vkCtx,
buffSize,
vulkan.BufferUsageFlags{ .storage_buffer_bit = true, .transfer_dst_bit = true },
vulkan.MemoryPropertyFlags{},
);
const data = try srcBuffer.map(vkCtx);
defer srcBuffer.unMap(vkCtx);
const mappedData: [*]MaterialBuffRecord = @ptrCast(@alignCast(data));
for (materialsList.items, 0..) |materialData, i| {
const materialId = try allocator.dupe(u8, materialData.id);
const vulkanMaterial = VulkanMaterial{ .id = materialId };
var hasTexture: u32 = 0;
var textureIdx: u32 = 0;
if (materialData.texturePath.len > 0) {
const nullTermPath = try allocator.dupeZ(u8, materialData.texturePath);
defer allocator.free(nullTermPath);
if (try textureCache.addTextureFromPath(allocator, vkCtx, nullTermPath)) {
if (textureCache.textureMap.getIndex(nullTermPath)) |idx| {
textureIdx = @as(u32, @intCast(idx));
hasTexture = 1;
} else {
log.warn("Could not find texture added to the cache [{s}]", .{materialData.texturePath});
}
}
}
const atBuffRecord = MaterialBuffRecord{
.diffuseColor = materialData.color,
.hasTexture = hasTexture,
.textureIdx = textureIdx,
.padding = [_]u32{ 0, 0 },
};
mappedData[i] = atBuffRecord;
try self.materialsMap.put(materialId, vulkanMaterial);
}
try cmdBuff.begin(vkCtx);
recordTransfer(vkCtx, cmdHandle, &srcBuffer, &dstBuffer);
try cmdBuff.end(vkCtx);
try cmdBuff.submitAndWait(vkCtx, vkQueue);
self.materialsBuffer = dstBuffer;
log.debug("Loaded {d} material(s)", .{numMaterials});
}
};We will always have a default material, to fall back to when rendering if the associated material is not found. Therefore, we create a default material, and create a list which stores references of the provided materials and this new default one which be located at position 0. As in the case of the models, we create a staging buffer and a GPU only accessible buffer for the materials. We iterate over the materials populating the buffer. We also populate the texture cache with the textures that we find associated to the materials. Keep in mind that we may use more textures than the ones strictly used by models. You will see that We need to add padding data, because due to the layout rules used in shaders, the minimum size of data will be multiples of vec4, therefore since we initially only need 6 bytes, we need to compensate with two more. At the end of the loop, we just record the transfer command, submit it to the queue, and wait for it to be finished.
Descriptors
Descriptors represent shader resources such us buffers, images or samplers. We will need to use descriptors in order to access the textures from the shaders and also for uniforms (in Vulkan uniforms are just the way to access buffers in the shaders). Descriptors are grouped in descriptor sets, whose general structure is defined through descriptor layouts. Descriptors are like handles to access resources from shaders, and they are created through a descriptor pool.
Managing descriptors is often a tedious tasks, you need to define, for each pool the number of descriptor sets that it will be able to hold for each of the supported types. Each descriptor needs to be associated to a descriptor set layout, which are tightly related to how they will be used in the shaders, etc. In order to facilitate this process, we are going to use the following approach:
- We will create descriptor pools which will support the descriptor sets we are going to use, size to the maximum number of elements supported by the driver.
- If we reach the limit in a specific descriptor pool, we will create just a new pool.
- We will store descriptor sets by name, so we can easily access them by an identifier.
We will centralize all of above in a struct named VkDescAllocator in order to isolate other parts of the code from the complexity of managing descriptor sets. It will be include din the src/eng/vk/vkDescs.zig so remember to include it in the mod.zig file: pub const desc = @import("vkDescs.zig");.
Let's start first by defining a new struct to handle a descriptor pool named VkDescPool (also in vkDescs.zig):
pub const VkDescPool = struct {
descPool: vulkan.DescriptorPool,
pub fn create(vkDevice: vk.dev.VkDevice, descPoolSizes: []const vulkan.DescriptorPoolSize) !VkDescPool {
var maxSets: u32 = 0;
for (descPoolSizes) |*descPoolSize| {
maxSets += descPoolSize.descriptor_count;
}
const createInfo = vulkan.DescriptorPoolCreateInfo{
.flags = .{ .free_descriptor_set_bit = true },
.p_pool_sizes = descPoolSizes.ptr,
.pool_size_count = @as(u32, @intCast(descPoolSizes.len)),
.max_sets = maxSets,
};
const descPool = try vkDevice.deviceProxy.createDescriptorPool(&createInfo, null);
return .{ .descPool = descPool };
}
pub fn cleanup(self: *const VkDescPool, vkDevice: vk.dev.VkDevice) void {
vkDevice.deviceProxy.destroyDescriptorPool(self.descPool, null);
}
};A descriptor pool is just a placeholder for descriptor set handles. When it is created, it just allocates different descriptor sets according to their types. Vulkan defines several types for the descriptor sets, such as uniforms, texture samplers, etc. We can specify how many descriptors we want to pre-create for each type. Therefore, the VkDescPool create function receives, besides a reference to the device, an array of vulkan.DescriptorPoolSize which specifies how many descriptor sets should be allocated for each type. With that information we will fill in DescriptorPoolCreateInfo structure that requires the createDescriptorPool function. One important topic to highlight is that in the DescriptorPoolCreateInfo we have set the flag free_descriptor_set_bit (VK_DESCRIPTOR_POOL_CREATE_FREE_DESCRIPTOR_SET_BIT). This flag will allow us to return descriptor sets to the pool when they are no longer used.
Before continuing with more code, let us clarify some concepts. Imagine we have, in GLSL, a definition of the following descriptor sets:
layout(set = 0, binding = 0) uniform A {
vec4 data;
} a;
layout(set = 0, binding = 1) uniform B {
vec4 data;
} b;
layout(set = 1, binding = 0) uniform C {
vec4 data;
} c;In the fragment above we have two descriptor sets. The first one is composed by two uniforms (a and b), each of them located in a different binding point 0 and 1. The second descriptor set just defines a single uniform (c) located at binding 0. Descriptor set layouts are used to define that structure. In fact, we can have several descriptor sets sharing the same layout. In the example above we can see two descriptor sets using different buffers associated to the same layout, for example, the layout shown for "c". Therefore, we need first to define a struct which contains information for a descriptor set inside a descriptor set layout. In this case, it will be named LayoutInfo:
pub const LayoutInfo = struct {
binding: u32,
descCount: u32,
descType: vulkan.DescriptorType,
stageFlags: vulkan.ShaderStageFlags,
};The attributes are:
binding: the binding point (given a descriptor set, each of the descriptors will be assigned to a unique binding number).descCount: The number of descriptors (we can have, for example, an array of buffers, so we will need as many descriptor set as the length of the array).descType: The type of the descriptor set (a uniform buffer, a texture sampler, etc.).stageFlags: At which stage in the pipeline it will be used.
We will create a struct to help us create descriptor set layouts:
pub const VkDescSetLayout = struct {
descSetLayout: vulkan.DescriptorSetLayout,
layoutInfos: []const LayoutInfo,
pub fn create(allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx, layoutInfos: []const LayoutInfo) !VkDescSetLayout {
const bindingInfos = try allocator.alloc(vulkan.DescriptorSetLayoutBinding, layoutInfos.len);
defer allocator.free(bindingInfos);
for (0..layoutInfos.len) |i| {
const bindingInfo = vulkan.DescriptorSetLayoutBinding{
.binding = layoutInfos[i].binding,
.descriptor_count = layoutInfos[i].descCount,
.descriptor_type = layoutInfos[i].descType,
.stage_flags = layoutInfos[i].stageFlags,
};
bindingInfos[i] = bindingInfo;
}
const createInfo = vulkan.DescriptorSetLayoutCreateInfo{
.binding_count = @as(u32, @intCast(bindingInfos.len)),
.p_bindings = bindingInfos.ptr,
};
const descSetLayout = try vkCtx.vkDevice.deviceProxy.createDescriptorSetLayout(&createInfo, null);
return .{
.descSetLayout = descSetLayout,
.layoutInfos = layoutInfos,
};
}
pub fn cleanup(self: *const VkDescSetLayout, vkCtx: *const vk.ctx.VkCtx) void {
vkCtx.vkDevice.deviceProxy.destroyDescriptorSetLayout(self.descSetLayout, null);
}
};We need to create as many vulkan.DescriptorSetLayoutBinding instances as LayoutInfo elements we have. That information is used to call the createDescriptorSetLayout function. The struct is completed by the classical cleanup function. In the example above, assuming we will use the descriptors at the vertex stage, we could define the layout information as follows (it is just an example to understand the usage, not included in the code):
const descLayoutAB = try vk.desc.VkDescSetLayout.create(
allocator,
vkCtx,
&[_]vk.desc.LayoutInfo{
.{
.binding = 0,
.descCount = 1,
.descType = vulkan.DescriptorType.uniform_buffer,
.stageFlags = vulkan.ShaderStageFlags{ .vertex_bit = true },
},
.{
.binding = 1,
.descCount = 1,
.descType = vulkan.DescriptorType.uniform_buffer,
.stageFlags = vulkan.ShaderStageFlags{ .vertex_bit = true },
},
},
);
const descLayoutC = try vk.desc.VkDescSetLayout.create(
allocator,
vkCtx,
&[_]vk.desc.LayoutInfo{
.{
.binding = 0,
.descCount = 1,
.descType = vulkan.DescriptorType.uniform_buffer,
.stageFlags = vulkan.ShaderStageFlags{ .vertex_bit = true },
},
},
);As you can see we need two VkDescSetLayout instances. The first one used for the first set (composed by uniforms A and B, each of them using different binding points) and the second one for uniform C.
Before doing a deep dive with descriptor sets, let's review texture samplers. Images are not usually accessed directly when used as textures. When we access a texture, we usually want to apply some type of filters, we may have mip levels and maybe specify some repetition patterns. All that is handled through a sampler. We have already created images and image views, but in order to access them in shaders we will need texture samplers. Therefore we will create a new struct named TextureSampler (it will be included in the vkTexture.zig file):
pub const VkTextSamplerInfo = struct {
addressMode: vulkan.SamplerAddressMode,
anisotropy: bool,
borderColor: vulkan.BorderColor,
};
pub const VkTextSampler = struct {
sampler: vulkan.Sampler,
pub fn create(vkCtx: *const vk.ctx.VkCtx, samplerInfo: VkTextSamplerInfo) !VkTextSampler {
const anisotropy = (vkCtx.vkPhysDevice.features.sampler_anisotropy == vulkan.Bool32.true) and samplerInfo.anisotropy;
const createInfo = vulkan.SamplerCreateInfo{
.mag_filter = vulkan.Filter.nearest,
.min_filter = vulkan.Filter.nearest,
.address_mode_u = samplerInfo.addressMode,
.address_mode_v = samplerInfo.addressMode,
.address_mode_w = samplerInfo.addressMode,
.border_color = samplerInfo.borderColor,
.mipmap_mode = vulkan.SamplerMipmapMode.nearest,
.min_lod = 0.0,
.max_lod = 0.0,
.mip_lod_bias = 0.0,
.compare_enable = vulkan.Bool32.false,
.compare_op = vulkan.CompareOp.never,
.unnormalized_coordinates = vulkan.Bool32.false,
.anisotropy_enable = if (anisotropy) vulkan.Bool32.true else vulkan.Bool32.false,
.max_anisotropy = if (anisotropy) vkCtx.vkPhysDevice.props.limits.max_sampler_anisotropy else 0.0,
};
const sampler = try vkCtx.vkDevice.deviceProxy.createSampler(&createInfo, null);
return .{ .sampler = sampler };
}
pub fn cleanup(self: *const VkTextSampler, vkCtx: *const vk.ctx.VkCtx) void {
vkCtx.vkDevice.deviceProxy.destroySampler(self.sampler, null);
}
};We will first define a helper struct that will encapsulate creation parameters named VkTextSamplerInfo which by now it will store if anisotropy should be enabled, the address mode and the border color for the texture (more on this later).
In order to create a sampler, we need to invoke the createSampler function which requires a VkTextSamplerInfo structure, defined by the following fields:
mag_filterandmin_filter: control how magnification and magnification filter work while performing a texture lookup. In this case, we are using avulkan.Filter.nearest(VK_FILTER_NEAREST) filter, which just picks the closest value in the lookup. You can use other options such asvulkan.Filter.linear(VK_FILTER_LINEAR) which is the value for a linear filter (for a 2D texture, it combines for values of four pixels weighted) orvulkan.Filter.cubic_ext(VK_FILTER_CUBIC_EXT) to apply cubic filtering (it uses 16 values for 2D textures).address_mode_u,address_mode_vandaddress_mode_w: This will control what will be returned for a texture lookup when the coordinates lie out of the texture size. TheU,VandWrefer to thex,yandzaxis (for 3D images). You can set several options such asvulkan.SamplerAddressMode.repeat(VK_SAMPLER_ADDRESS_MODE_REPEAT) which means that the texture is repeated endlessly over all the axis orvulkan.SamplerAddressMode.mirrored_repeat(VK_SAMPLER_ADDRESS_MODE_MIRRORED_REPEAT) which repeats in a mirrored way orvulkan.SamplerAddressMode.clamp_to_edge(VK_SAMPLER_ADDRESS_MODE_CLAMP_TO_EDGE) which just uses the latest edge value.border_color: This sets the color for the border that will be used for texture lookups beyond bounds whenvulkan.SamplerAddressMode.clamp_to_edge(VK_SAMPLER_ADDRESS_MODE_CLAMP_TO_BORDER) is used in theaddress_mode_Xattributes.mipmap_mode: This is used to specify the mipmap filter to apply in lookups. We will address this in later chapters.min_lod,max_lodandmip_lod_bias: These parameters are used for mip mapping, so we will review them in later chapters.compare_enable: It enables a comparison when performing texture lookups.compare_op: It specifies the comparison operation. We will not be using this at this moment.unnormalized_coordinates: Texture coordinates cover the [0, 1] range. When this parameter is set totruethe coordinates will cover the ranges [0, width], [0, height].anisotropy_enable: It enables / disables anisotropic filtering. We will enable it if the device support
Finally, we enable anisotropic filter if the device supports it. With all that information we just call the vkCreateSampler function and complete the struct with the usual cleanup and the getter functions. Anisotropic filtering is used to eliminate aliasing effects when sampling from a texture. The struct completes with classical cleanup function and a getter to access the texture sampler handle.
It is now time to create the a struct to represent descriptor sets. The struct, named VkDesSet, starts like this:
pub const VkDesSet = struct {
descSet: vulkan.DescriptorSet,
pub fn create(vkDevice: vk.dev.VkDevice, vkDescPool: vk.desc.VkDescPool, vkDescSetLayout: VkDescSetLayout) !VkDesSet {
const descSetLayouts = [_]vulkan.DescriptorSetLayout{vkDescSetLayout.descSetLayout};
const allocInfo = vulkan.DescriptorSetAllocateInfo{
.descriptor_pool = vkDescPool.descPool,
.p_set_layouts = &descSetLayouts,
.descriptor_set_count = descSetLayouts.len,
};
var descSet: [1]vulkan.DescriptorSet = undefined;
try vkDevice.deviceProxy.allocateDescriptorSets(&allocInfo, &descSet);
return .{ .descSet = descSet[0] };
}
...
};In the create function we allocate a Vulkan descriptor set. In order to do that, we need to invoke the allocateDescriptorSets Vulkan function which requires a DescriptorSetAllocateInfo structure. This structure needs a handle to a descriptor pool and handle to the layout which describes the descriptor set.
Now let's add some functions to associate a descriptor set with buffers or images, so we can use them in our shaders. Let's start with the setBuffer function:
pub const VkDesSet = struct {
...
pub fn setBuffer(self: *const VkDesSet, vkDevice: vk.dev.VkDevice, vkBuffer: vk.buf.VkBuffer, binding: u32, descType: vulkan.DescriptorType) void {
const bufferInfo = [_]vulkan.DescriptorBufferInfo{.{
.buffer = vkBuffer.buffer,
.offset = 0,
.range = vkBuffer.size,
}};
const imageInfo = [_]vulkan.DescriptorImageInfo{};
const texelBufferView = [_]vulkan.BufferView{};
const descSets = [_]vulkan.WriteDescriptorSet{.{
.dst_set = self.descSet,
.descriptor_count = 1,
.dst_binding = binding,
.descriptor_type = descType,
.p_buffer_info = &bufferInfo,
.p_image_info = &imageInfo,
.p_texel_buffer_view = &texelBufferView,
.dst_array_element = 0,
}};
vkDevice.deviceProxy.updateDescriptorSets(descSets.len, &descSets, 0, null);
}
...
};We first create an array of DescriptorBufferInfo (we will need one per descriptor set) which defines the buffer information that will be associated to each descriptor set. It expects the following attributes:
buffer: The Vulkan buffer to associate with.offset: An offset in bytes for that buffer (we may opt to not bind to the whole buffer but just a chunk).range: The size in bytes of the chunk of the buffer to be associated to the descriptor set.
After that, we create an array of WriteDescriptorSet (we will need one per descriptor set), which expects expects the following attributes:
dst_set: The handle to the descriptor set.descriptor_count: The number of descriptors.dst_binding: The binding point to which write operation refers to. Remember that a descriptor set can have many descriptors, each of them in a different binding point.descriptor_type: The type of the descriptor (For exampleuniform_buffer(VK_BUFFER_USAGE_UNIFORM_BUFFER_BIT) for uniforms).p_buffer_info: A pointer to theDescriptorBufferInfostructure created before.p_image_info: A pointer to the images to be associated to this descriptor set. We will not use this feature in this function so we just pass an empty array.p_texel_buffer_view: Same as above.dst_array_element: We will not use this (used for inline uniform blocks).
After that, we update the descriptor set by calling the updateDescriptorSets function. Let's add now a new function to associate a descriptor set with an image view:
pub const VkDesSet = struct {
...
pub fn setImage(self: *const VkDesSet, vkDevice: vk.dev.VkDevice, vkImageView: vk.imv.VkImageView, vkTextSampler: vk.text.VkTextSampler, binding: u32) void {
const imageInfo = [_]vulkan.DescriptorImageInfo{.{
.image_layout = vulkan.ImageLayout.shader_read_only_optimal,
.image_view = vkImageView.view,
.sampler = vkTextSampler.sampler,
}};
const bufferInfo = [_]vulkan.DescriptorBufferInfo{};
const texelBufferView = [_]vulkan.BufferView{};
const descSets = [_]vulkan.WriteDescriptorSet{.{
.dst_set = self.descSet,
.descriptor_count = 1,
.dst_binding = binding,
.descriptor_type = vulkan.DescriptorType.combined_image_sampler,
.p_buffer_info = &bufferInfo,
.p_image_info = &imageInfo,
.p_texel_buffer_view = &texelBufferView,
.dst_array_element = 0,
}};
vkDevice.deviceProxy.updateDescriptorSets(descSets.len, &descSets, 0, null);
}
...
}In this case, the process is quite similar, but we use a DescriptorImageInfo to associate with an image view instead of a buffer and use the p_image_info when writing to a descriptor set. In this case, we provide a function to associate to a image view. We need to use a VkTextSampler, which if you recall will specify how we will access the image.
Finally, let's add a new function to associate an array of images to a descriptor set:
pub const VkDesSet = struct {
...
pub fn setImageArr(
self: *const VkDesSet,
allocator: std.mem.Allocator,
vkDevice: vk.dev.VkDevice,
vkImageViews: []const vk.imv.VkImageView,
vkTextSampler: vk.text.VkTextSampler,
binding: u32,
) !void {
const imageInfos = try allocator.alloc(vulkan.DescriptorImageInfo, vkImageViews.len);
defer allocator.free(imageInfos);
for (vkImageViews, 0..) |vkImageView, i| {
imageInfos[i] = .{
.image_layout = vulkan.ImageLayout.shader_read_only_optimal,
.image_view = vkImageView.view,
.sampler = vkTextSampler.sampler,
};
}
const bufferInfo = [_]vulkan.DescriptorBufferInfo{};
const texelBufferView = [_]vulkan.BufferView{};
const descSets = [_]vulkan.WriteDescriptorSet{.{
.dst_set = self.descSet,
.descriptor_count = @as(u32, @intCast(imageInfos.len)),
.dst_binding = binding,
.descriptor_type = vulkan.DescriptorType.combined_image_sampler,
.p_buffer_info = &bufferInfo,
.p_image_info = @ptrCast(imageInfos.ptr),
.p_texel_buffer_view = &texelBufferView,
.dst_array_element = 0,
}};
vkDevice.deviceProxy.updateDescriptorSets(descSets.len, &descSets, 0, null);
}
};Please note that an array of textures just requires a single descriptor. As you can see the loop is used just to iterate over the image views to create as many DescriptorImageInfo instances as images, but we keep a single WriteDescriptorSet with a single binding point. We will use this to associate an array of textures for the materials.
Now it is the time to put everything in place in the VkDescAllocator struct which starts like this:
pub const VkDescAllocator = struct {
poolInfoList: std.ArrayList(*PoolInfo),
descSetMap: std.StringHashMap(VkDesSet),
...
pub fn create(allocator: std.mem.Allocator, vkPhysDevice: vk.phys.VkPhysDevice, vkDevice: vk.dev.VkDevice) !VkDescAllocator {
const descSetMap = std.StringHashMap(VkDesSet).init(
allocator,
);
const poolInfo = try allocator.create(PoolInfo);
poolInfo.* = try PoolInfo.create(allocator, vkPhysDevice, vkDevice);
var poolInfoList = try std.ArrayList(*PoolInfo).initCapacity(allocator, 1);
try poolInfoList.append(allocator, poolInfo);
return .{
.poolInfoList = poolInfoList,
.descSetMap = descSetMap,
};
}
...
};The poolInfoList will store the list of descriptor pools. Remember that we will create new pools as long as we exhaust existing ones. The descSetMap will just contain the references to the descriptor sets to the pool used to create it (using the pool position). We initialize the poolInfoList with one entry. Let's review how the PoolInfo struct looks like:
const PoolInfo = struct {
descCount: std.AutoArrayHashMap(vulkan.DescriptorType, u32),
vkDescPool: VkDescPool,
pub fn cleanup(self: *PoolInfo, vkDevice: vk.dev.VkDevice) void {
self.descCount.deinit();
self.vkDescPool.cleanup(vkDevice);
}
pub fn create(allocator: std.mem.Allocator, vkPhysDevice: vk.phys.VkPhysDevice, vkDevice: vk.dev.VkDevice) !PoolInfo {
const descPoolSize = [_]vulkan.DescriptorPoolSize{ .{
.type = vulkan.DescriptorType.uniform_buffer,
.descriptor_count = try getLimits(vkPhysDevice, vulkan.DescriptorType.uniform_buffer),
}, .{
.type = vulkan.DescriptorType.combined_image_sampler,
.descriptor_count = try getLimits(vkPhysDevice, vulkan.DescriptorType.combined_image_sampler),
}, .{
.type = vulkan.DescriptorType.storage_buffer,
.descriptor_count = try getLimits(vkPhysDevice, vulkan.DescriptorType.storage_buffer),
} };
const vkDescPool = try VkDescPool.create(vkDevice, &descPoolSize);
var descCount = std.AutoArrayHashMap(vulkan.DescriptorType, u32).init(allocator);
for (descPoolSize) |item| {
try descCount.put(item.type, item.descriptor_count);
}
return .{
.descCount = descCount,
.vkDescPool = vkDescPool,
};
}
pub fn getLimits(vkPhysDevice: vk.phys.VkPhysDevice, descType: vulkan.DescriptorType) !u32 {
const limits = vkPhysDevice.props.limits;
return switch (descType) {
vulkan.DescriptorType.uniform_buffer => limits.max_descriptor_set_uniform_buffers,
vulkan.DescriptorType.combined_image_sampler => limits.max_descriptor_set_samplers,
vulkan.DescriptorType.storage_buffer => limits.max_descriptor_set_storage_buffers,
else => return error.NotSupportedDeviceType,
};
}
};In the create function we just get the device limits and define the size for each descriptor type to the maximum number supported. In our case, we will be supporting uniform buffers (max_descriptor_set_uniform_buffers), texture samplers (combined_image_sampler) and storage buffers (max_descriptor_set_storage_buffers).
Let's go back to the VkDescAllocator struct and review the function to add a single a descriptor set:
pub const VkDescAllocator = struct {
...
pub fn addDescSet(
self: *VkDescAllocator,
allocator: std.mem.Allocator,
vkPhysDevice: vk.phys.VkPhysDevice,
vkDevice: vk.dev.VkDevice,
id: []const u8,
vkDescSetLayout: VkDescSetLayout,
) !VkDesSet {
const count = 1;
var vkDescPoolOpt: ?VkDescPool = null;
var poolInfoOpt: ?*PoolInfo = null;
if (self.descSetMap.contains(id)) {
log.err("Duplicate key for descriptor set [{s}]", .{id});
return error.DuplicateDescKey;
}
for (self.poolInfoList.items) |poolInfo| {
for (vkDescSetLayout.layoutInfos) |layoutInfo| {
const available = poolInfo.descCount.get(layoutInfo.descType) orelse return error.KeyNotFound;
const limit = try PoolInfo.getLimits(vkPhysDevice, layoutInfo.descType);
if (count > limit) {
log.err("Cannot create more than [{d}] for descriptor type [{any}]", .{
limit, layoutInfo.descType,
});
return error.DescLimitExceeded;
}
if (available >= count) {
vkDescPoolOpt = poolInfo.vkDescPool;
poolInfoOpt = poolInfo;
} else {
vkDescPoolOpt = null;
poolInfoOpt = null;
}
}
if (poolInfoOpt != null) {
break;
}
}
if (poolInfoOpt == null) {
const poolInfo = try allocator.create(PoolInfo);
poolInfo.* = try PoolInfo.create(allocator, vkPhysDevice, vkDevice);
try self.poolInfoList.append(allocator, poolInfo);
vkDescPoolOpt = poolInfo.vkDescPool;
poolInfoOpt = poolInfo;
}
if (vkDescPoolOpt) |vkDescPool| {
const vkDescSet = try VkDesSet.create(vkDevice, vkDescPool, vkDescSetLayout);
const poolInfo = poolInfoOpt.?;
for (vkDescSetLayout.layoutInfos) |layoutInfo| {
const available = poolInfo.descCount.get(layoutInfo.descType) orelse return error.KeyNotFound;
try poolInfo.descCount.put(
layoutInfo.descType,
available - count,
);
}
const ownedId = try allocator.dupe(u8, id);
try self.descSetMap.put(ownedId, vkDescSet);
return vkDescSet;
} else {
return error.NotAvailable;
}
}
...
};The process is as follows:
- We iterate over all the created descriptor pools.
- After that, we iterate over the descriptor set layout descriptor types. Remember that a descriptor set layout can reference several descriptor types.
- For each of the types we get the available descriptors in the current pool.
- If we do not recognize the descriptor type or we are requesting more descriptors than a single pool can handle (exceeding the physical device limits), we just abort.
- If we find no pool with available space we will create a new one.
- If we have finished iterating over the available descriptor pools and we have not found one with available space, this means that we need to create another pool.
- Once we have a pool, either because one of the existing ones have enough spare space or because we have created a new one, we create the descriptor set, and update the available space in the associated pool.
The process can still be improved to reduce fragmentation, but I did not want to complicate the code even more. In any case, you get the idea and can modify it to be more efficient easily.
One important aspect to highlight is that, if you recall the example sets defined above. We said, that the first two uniforms shared the same set. Is you look at the code, we see that we iterate over all the LayoutInfo instances, so we are checking that we have room for 2 uniform descriptor sets. Although, they share the same descriptor set, we need to reserve space for all the underlying structures.
The rest of the functions of the struct are as follows:
pub const VkDescAllocator = struct {
...
pub fn cleanup(self: *VkDescAllocator, allocator: std.mem.Allocator, vkDevice: vk.dev.VkDevice) void {
for (self.poolInfoList.items) |poolInfo| {
poolInfo.cleanup(vkDevice);
allocator.destroy(poolInfo);
}
self.poolInfoList.deinit(allocator);
var iter = self.descSetMap.iterator();
while (iter.next()) |entry| {
allocator.free(entry.key_ptr.*);
}
self.descSetMap.deinit();
}
...
pub fn getDescSet(self: *const VkDescAllocator, id: []const u8) ?VkDesSet {
return self.descSetMap.get(id);
}
};The cleanup function just iterates over the created pools and destroys them. The getDescSet just returns a descriptor set using its identifier. We will instantiate the VkDescAllocator struct in the VkCtx one so it can be used along the code:
pub const VkCtx = struct {
...
vkDescAllocator: vk.desc.VkDescAllocator,
...
pub fn create(allocator: std.mem.Allocator, constants: com.common.Constants, window: sdl3.video.Window) !VkCtx {
...
const vkDescAllocator = try vk.desc.VkDescAllocator.create(allocator, vkPhysDevice, vkDevice);
return .{
.constants = constants,
.vkDescAllocator = vkDescAllocator,
.vkDevice = vkDevice,
.vkInstance = vkInstance,
.vkPhysDevice = vkPhysDevice,
.vkSurface = vkSurface,
.vkSwapChain = vkSwapChain,
};
}
pub fn cleanup(self: *VkCtx, allocator: std.mem.Allocator) !void {
self.vkDescAllocator.cleanup(allocator, self.vkDevice);
...
}
...
};Completing the changes
We are almost finishing, we just need to put all the pieces together. First, we need to update the VkPipeline struct to take descriptor set layouts into consideration. We will first update the VkPipelineCreateInfo struct to be able to store an array of descriptor set layouts:
pub const VkPipelineCreateInfo = struct {
...
descSetLayouts: ?[]const vulkan.DescriptorSetLayout,
...
}With that information, we can update the VkPipeline struct:
pub const VkPipeline = struct {
...
pub fn create(allocator: std.mem.Allocator, vkCtx: *const vk.ctx.VkCtx, createInfo: *const VkPipelineCreateInfo) !VkPipeline {
...
const pipelineLayout = try vkCtx.vkDevice.deviceProxy.createPipelineLayout(&.{
.flags = .{},
.set_layout_count = if (createInfo.descSetLayouts) |ds| @as(u32, @intCast(ds.len)) else 0,
.p_set_layouts = if (createInfo.descSetLayouts) |ds| ds.ptr else null,
.push_constant_range_count = if (createInfo.pushConstants) |pc| @as(u32, @intCast(pc.len)) else 0,
.p_push_constant_ranges = if (createInfo.pushConstants) |pcs| pcs.ptr else null,
}, null);
...
}
...
}With the descriptor layouts passed as a parameter (inside the VkPipelineCreateInfo struct), we can now use the p_set_layouts which will hold a pointer to the descriptor set layouts and set_layout_count which will contain the number of those layouts.
Prior to see what the changes will be in the RenderScn struct, let's update first the shaders. This is the source code of the vertex shader (scn_vtx.glsl):
#version 450
layout(location = 0) in vec3 inPos;
layout(location = 1) in vec2 inTextCoords;
layout(location = 0) out vec2 outTextCoords;
layout(set = 0, binding = 0) uniform ProjUniform {
mat4 matrix;
} projUniform;
layout(push_constant) uniform pc {
mat4 modelMatrix;
} push_constants;
void main()
{
gl_Position = projUniform.matrix * push_constants.modelMatrix * vec4(inPos, 1);
outTextCoords = inTextCoords;
}In the vertex shader, we are using a uniform to hold the projection matrix as a uniform. Therefore, we will need a descriptor set for this. The push constant just holds the model matrix. By changing this, we do not need to store the projection matrix in the push constants for each mesh. It will be set just once.
The fragment shader source code (scn_frg.glsl) looks like this:
#version 450
// Keep in sync manually with code
const int MAX_TEXTURES = 100;
layout(location = 0) in vec2 inTextCoords;
layout(location = 0) out vec4 outFragColor;
struct Material {
vec4 diffuseColor;
uint hasTexture;
uint textureIdx;
uint padding[2];
};
layout(set = 1, binding = 0) readonly buffer MaterialUniform {
Material materials[];
} matUniform;
layout(set = 2, binding = 0) uniform sampler2D textSampler[MAX_TEXTURES];
layout(push_constant) uniform pc {
layout(offset = 64) uint materialIdx;
} push_constants;
void main()
{
Material material = matUniform.materials[push_constants.materialIdx];
if (material.hasTexture == 1) {
outFragColor = texture(textSampler[material.textureIdx], inTextCoords);
} else {
outFragColor = material.diffuseColor;
}
}We first define a constant (MAX_TEXTURES) which sets the maximum number of textures that we will support. We will be using an array of sampler2D uniform to perform texture lookups. This array needs to be sized at compile time. So make sure that you are in sync with this constant in GLSL code and the one in Zig side. In next chapters we will see how to use specialization constants, which allows us to modify constants when loading shader modules, but this should not be used in these array of uniforms.
Then we define a read only buffer which holds an array of materials, which is a struct that maps material information (diffuse color, if it has texture and the associated index). Remember, that due to std140 layout constraints (the default), we need to take into consideration extra padding. This will be a storage buffer, and does not need to be sized.
We will receive the position of the associated material in the buffer through a push constant. With all that information we can get the output color either form the associated texture or the material diffuse color.
Now it is the time to use all these concepts together in the RenderScn struct:
...
const PushConstantsVtx = struct {
modelMatrix: zm.Mat,
};
const PushConstantsFrg = struct {
materialIdx: u32,
};
const DEPTH_FORMAT = vulkan.Format.d16_unorm;
const DESC_ID_MAT = "SCN_DESC_ID_MAT";
const DESC_ID_CAM = "SCN_DESC_ID_CAM";
const DESC_ID_TEXTS = "SCN_DESC_ID_TEXTS";
pub const RenderScn = struct {
buffCamera: vk.buf.VkBuffer,
depthAttachments: []eng.rend.Attachment,
descLayoutFrgSt: vk.desc.VkDescSetLayout,
descLayoutVtx: vk.desc.VkDescSetLayout,
descLayoutTexture: vk.desc.VkDescSetLayout,
textSampler: vk.text.VkTextSampler,
vkPipeline: vk.pipe.VkPipeline,
...
pub fn create(allocator: std.mem.Allocator, vkCtx: *vk.ctx.VkCtx) !RenderScn {
...
// Textures
const samplerInfo = vk.text.VkTextSamplerInfo{
.addressMode = vulkan.SamplerAddressMode.repeat,
.anisotropy = true,
.borderColor = vulkan.BorderColor.float_opaque_black,
};
const textSampler = try vk.text.VkTextSampler.create(vkCtx, samplerInfo);
// Descriptor set layouts
const descLayoutVtx = try vk.desc.VkDescSetLayout.create(
allocator,
vkCtx,
&[_]vk.desc.LayoutInfo{.{
.binding = 0,
.descCount = 1,
.descType = vulkan.DescriptorType.uniform_buffer,
.stageFlags = vulkan.ShaderStageFlags{ .vertex_bit = true },
}},
);
const descLayoutFrgSt = try vk.desc.VkDescSetLayout.create(
allocator,
vkCtx,
&[_]vk.desc.LayoutInfo{.{
.binding = 0,
.descCount = 1,
.descType = vulkan.DescriptorType.storage_buffer,
.stageFlags = vulkan.ShaderStageFlags{ .fragment_bit = true },
}},
);
const descLayoutTexture = try vk.desc.VkDescSetLayout.create(
allocator,
vkCtx,
&[_]vk.desc.LayoutInfo{.{
.binding = 0,
.descCount = eng.tcach.MAX_TEXTURES,
.descType = vulkan.DescriptorType.combined_image_sampler,
.stageFlags = vulkan.ShaderStageFlags{ .fragment_bit = true },
}},
);
const descSetLayouts = [_]vulkan.DescriptorSetLayout{ descLayoutVtx.descSetLayout, descLayoutFrgSt.descSetLayout, descLayoutTexture.descSetLayout };
const buffCamera = try vk.util.createHostVisibleBuff(
allocator,
vkCtx,
DESC_ID_CAM,
@sizeOf(zm.Mat),
.{ .uniform_buffer_bit = true },
descLayoutVtx,
);
// Push constants
const pushConstants = [_]vulkan.PushConstantRange{
.{
.stage_flags = vulkan.ShaderStageFlags{ .vertex_bit = true },
.offset = 0,
.size = @sizeOf(PushConstantsVtx),
},
.{
.stage_flags = vulkan.ShaderStageFlags{ .fragment_bit = true },
.offset = @sizeOf(PushConstantsVtx),
.size = @sizeOf(PushConstantsFrg),
},
};
// Pipeline
const vkPipelineCreateInfo = vk.pipe.VkPipelineCreateInfo{
.colorFormat = vkCtx.vkSwapChain.surfaceFormat.format,
.depthFormat = DEPTH_FORMAT,
.descSetLayouts = descSetLayouts[0..],
.modulesInfo = modulesInfo,
.pushConstants = pushConstants[0..],
.useBlend = false,
.vtxBuffDesc = .{
.attribute_description = @constCast(&VtxBuffDesc.attribute_description)[0..],
.binding_description = VtxBuffDesc.binding_description,
},
};
const vkPipeline = try vk.pipe.VkPipeline.create(allocator, vkCtx, &vkPipelineCreateInfo);
return .{
.buffCamera = buffCamera,
.depthAttachments = depthAttachments,
.descLayoutFrgSt = descLayoutFrgSt,
.descLayoutVtx = descLayoutVtx,
.descLayoutTexture = descLayoutTexture,
.textSampler = textSampler,
.vkPipeline = vkPipeline,
};
}
...
};First we need to modify the push constant used in the vertex shader to hold just the model matrix and then create a new push constant to be used in the fragment shader that will contain material information. Then we define some constants that will hold the identifiers associated to the descriptor sets we are going to use:
DESC_ID_MAT: for the materials.DESC_ID_CAMERA: for camera the projection matrix.DESC_ID_TEXTS: for the array of textures.
In the create function we create a new texture sampler, and the descriptor set layouts to support the descriptors declared in our shaders. The descriptor set associated to the projection matrix will have the vulkan.DescriptorType.uniform_buffer layout (VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER) as it will be a uniform and the stage will have the vertex_bit activated (VK_SHADER_STAGE_VERTEX_BIT) since it will be used in the vertex shader. The descriptor set layout for the storage buffer that will hold the materials will have the vulkan.DescriptorType.storage_buffer type (VK_DESCRIPTOR_TYPE_STORAGE_BUFFER) and the fragment_bit flag since it will be used in the fragment stage. The descriptor set layout used for the texture sampler will have the type combined_image_sampler (VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER) and will also be used in the fragment stage.
We will create a buffer to hold the projection matrix. Since we will be using buffers that can be accessed both by the GPU and the CPU, which will have a descriptor set associated to it, we will create an utility function named createHostVisibleBuff, It will be defined in a new file: src/eng/vk/VkUtils.zig (Remember to include it in the mod.zig file: pub const util = @import("vkUtils.zig");). It is defined like this:
const std = @import("std");
const vulkan = @import("vulkan");
const vk = @import("mod.zig");
pub fn createHostVisibleBuff(
allocator: std.mem.Allocator,
vkCtx: *vk.ctx.VkCtx,
id: []const u8,
size: u64,
bufferUsage: vulkan.BufferUsageFlags,
vkDescSetLayout: vk.desc.VkDescSetLayout,
) !vk.buf.VkBuffer {
const buffer = try vk.buf.VkBuffer.create(
vkCtx,
size,
bufferUsage,
.{ .host_visible_bit = true, .host_coherent_bit = true },
);
const descSet = try vkCtx.vkDescAllocator.addDescSet(
allocator,
vkCtx.vkPhysDevice,
vkCtx.vkDevice,
id,
vkDescSetLayout,
);
const layoutInfo = vkDescSetLayout.layoutInfos[0];
descSet.setBuffer(vkCtx.vkDevice, buffer, layoutInfo.binding, layoutInfo.descType);
return buffer;
}Back in the RenderScn struct, after that, we create the push constants range definition and define the pipeline creation information using the descriptor sets layouts in the new descSetLayouts attribute to create the pipeline.
We will add a new function named init. This function will create a descriptor set for the storage buffer that contains material data, and associate it with the buffer we created in the MaterialsCache struct. We will also create the descriptor set for the array of images with the textures loaded in the TextureCache function. This function will need to be invoked during initialization so descriptor sets are ready during render process.
pub const RenderScn = struct {
...
pub fn init(self: *RenderScn, allocator: std.mem.Allocator, vkCtx: *vk.ctx.VkCtx, textureCache: *eng.tcach.TextureCache, materialsCache: *eng.mcach.MaterialsCache) !void {
const imageViews = try allocator.alloc(vk.imv.VkImageView, textureCache.textureMap.count());
defer allocator.free(imageViews);
const descSet = try vkCtx.vkDescAllocator.addDescSet(
allocator,
vkCtx.vkPhysDevice,
vkCtx.vkDevice,
DESC_ID_TEXTS,
self.descLayoutTexture,
);
var iter = textureCache.textureMap.iterator();
var i: u32 = 0;
while (iter.next()) |entry| {
imageViews[i] = entry.value_ptr.vkImageView;
i += 1;
}
try descSet.setImageArr(allocator, vkCtx.vkDevice, imageViews, self.textSampler, 0);
const matDescSet = try vkCtx.vkDescAllocator.addDescSet(
allocator,
vkCtx.vkPhysDevice,
vkCtx.vkDevice,
DESC_ID_MAT,
self.descLayoutFrgSt,
);
const layoutInfo = self.descLayoutFrgSt.layoutInfos[0];
matDescSet.setBuffer(vkCtx.vkDevice, materialsCache.materialsBuffer.?, layoutInfo.binding, layoutInfo.descType);
}
...
};We will need also to update the render function to use the descriptor sets:
pub const RenderScn = struct {
...
pub fn render(
self: *RenderScn,
vkCtx: *const vk.ctx.VkCtx,
engCtx: *const eng.engine.EngCtx,
vkCmd: vk.cmd.VkCmdBuff,
modelsCache: *const eng.mcach.ModelsCache,
materialsCache: *const eng.mcach.MaterialsCache,
imageIndex: u32,
) !void {
const allocator = engCtx.allocator;
const scene = &engCtx.scene;
...
try self.updateCamera(vkCtx, &scene.camera.projData.projMatrix);
// Bind descriptor sets
const vkDescAllocator = vkCtx.vkDescAllocator;
var descSets = try std.ArrayList(vulkan.DescriptorSet).initCapacity(allocator, 3);
defer descSets.deinit(allocator);
try descSets.append(allocator, vkDescAllocator.getDescSet(DESC_ID_CAM).?.descSet);
try descSets.append(allocator, vkDescAllocator.getDescSet(DESC_ID_MAT).?.descSet);
try descSets.append(allocator, vkDescAllocator.getDescSet(DESC_ID_TEXTS).?.descSet);
device.cmdBindDescriptorSets(
cmdHandle,
vulkan.PipelineBindPoint.graphics,
self.vkPipeline.pipelineLayout,
0,
@as(u32, @intCast(descSets.items.len)),
descSets.items.ptr,
0,
null,
);
...
while (iter.next()) |entityRef| {
const entity = entityRef.*;
const vulkanModel = modelsCache.modelsMap.get(entity.modelId);
if (vulkanModel) |*vm| {
for (vm.meshes.items) |mesh| {
var materialIdx: u32 = 0;
if (materialsCache.materialsMap.getIndex(mesh.materialId)) |idx| {
materialIdx = @as(u32, @intCast(idx));
}
self.setPushConstants(vkCtx, cmdHandle, entity, materialIdx);
device.cmdBindIndexBuffer(cmdHandle, mesh.buffIdx.buffer, 0, vulkan.IndexType.uint32);
device.cmdBindVertexBuffers(cmdHandle, 0, 1, @ptrCast(&mesh.buffVtx.buffer), &offset);
device.cmdDrawIndexed(cmdHandle, @as(u32, @intCast(mesh.numIndices)), 1, 0, 0, 0);
}
} else {
std.log.warn("Could not find model {s}", .{entity.modelId});
}
}
...
}
...
};We need to update the projection matrix buffer by calling the updateCamera function. After that we will use the VkDescAllocator struct, we can fill a list with the descriptor sets handles retrieving them by their id. In order to use them we need to bind those descriptor sets while rendering by calling the cmdBindDescriptorSets Vulkan function. While iterating over the meshes, we get the material index and set the push constants accordingly.
The setPushConstants function also needs to be changed to use the new push constants:
pub const RenderScn = struct {
...
fn setPushConstants(self: *RenderScn, vkCtx: *const vk.ctx.VkCtx, cmdHandle: vulkan.CommandBuffer, entity: *eng.ent.Entity, materialIdx: u32) void {
const pushConstantsVtx = PushConstantsVtx{
.modelMatrix = entity.modelMatrix,
};
vkCtx.vkDevice.deviceProxy.cmdPushConstants(
cmdHandle,
self.vkPipeline.pipelineLayout,
vulkan.ShaderStageFlags{ .vertex_bit = true },
0,
@sizeOf(PushConstantsVtx),
&pushConstantsVtx,
);
const pushConstantsFrg = PushConstantsFrg{
.materialIdx = materialIdx,
};
vkCtx.vkDevice.deviceProxy.cmdPushConstants(
cmdHandle,
self.vkPipeline.pipelineLayout,
vulkan.ShaderStageFlags{ .fragment_bit = true },
@sizeOf(PushConstantsVtx),
@sizeOf(PushConstantsFrg),
&pushConstantsFrg,
);
}
...
};Finally, the updateCamera function is defined like this:
pub const RenderScn = struct {
...
fn updateCamera(self: *RenderScn, vkCtx: *const vk.ctx.VkCtx, projMatrix: *const zm.Mat) !void {
const buffData = try self.buffCamera.map(vkCtx);
defer self.buffCamera.unMap(vkCtx);
const gpuBytes: [*]u8 = @ptrCast(buffData);
const projMatrixBytes = std.mem.asBytes(projMatrix);
const projMatrixPtr: [*]align(16) const u8 = projMatrixBytes.ptr;
@memcpy(gpuBytes[0..@sizeOf(zm.Mat)], projMatrixPtr[0..@sizeOf(zm.Mat)]);
}
...
};The changes required in the Render struct are smaller, we basically instantiate the MaterialsCache and TextureCache struct and adapt some functions to the new parameters added:
const log = std.log.scoped(.eng);
...
pub const Render = struct {
...
materialsCache: eng.mcach.MaterialsCache,
...
textureCache: eng.tcach.TextureCache,
pub fn cleanup(self: *Render, allocator: std.mem.Allocator) !void {
...
self.textureCache.cleanup(allocator, &self.vkCtx);
self.materialsCache.cleanup(allocator, &self.vkCtx);
...
}
pub fn create(allocator: std.mem.Allocator, constants: com.common.Constants, window: sdl3.video.Window) !Render {
var vkCtx = try vk.ctx.VkCtx.create(allocator, constants, window);
...
const materialsCache = eng.mcach.MaterialsCache.create(allocator);
const modelsCache = eng.mcach.ModelsCache.create(allocator);
const textureCache = eng.tcach.TextureCache.create(allocator);
return .{
.vkCtx = vkCtx,
.cmdPools = cmdPools,
.cmdBuffs = cmdBuffs,
.currentFrame = 0,
.fences = fences,
.materialsCache = materialsCache,
.modelsCache = modelsCache,
.mustResize = false,
.queueGraphics = queueGraphics,
.queuePresent = queuePresent,
.renderScn = renderScn,
.semsPresComplete = semsPresComplete,
.semsRenderComplete = semsRenderComplete,
.textureCache = textureCache,
};
}
pub fn init(self: *Render, allocator: std.mem.Allocator, engCtx: *eng.engine.EngCtx, initData: *const eng.engine.InitData) !void {
log.debug("Starting render init", .{});
const constants = engCtx.constants;
const extent = self.vkCtx.vkSwapChain.extent;
engCtx.scene.camera.projData.update(
constants.fov,
constants.zNear,
constants.zFar,
@as(f32, @floatFromInt(extent.width)),
@as(f32, @floatFromInt(extent.height)),
);
try self.materialsCache.init(allocator, &self.vkCtx, &self.textureCache, &self.cmdPools[0], self.queueGraphics, initData);
const numTextures = self.textureCache.textureMap.count();
if (numTextures < eng.tcach.MAX_TEXTURES) {
const numPadding = eng.tcach.MAX_TEXTURES - numTextures;
for (0..numPadding) |_| {
const id = try com.utils.generateUuid(allocator);
defer allocator.free(id);
const textureInfo = eng.tcach.TextureInfo{
.data = eng.tcach.EMPTY_PIXELS[0..],
.width = 1,
.height = 1,
.format = vulkan.Format.r8g8b8a8_srgb,
.id = id,
};
try self.textureCache.addTexture(allocator, &self.vkCtx, &textureInfo);
}
}
try self.textureCache.recordTextures(&self.vkCtx, &self.cmdPools[0], self.queueGraphics);
try self.modelsCache.init(allocator, &self.vkCtx, &self.cmdPools[0], self.queueGraphics, initData);
try self.renderScn.init(allocator, &self.vkCtx, &self.textureCache, &self.materialsCache);
log.debug("Finished render init", .{});
}
pub fn render(self: *Render, engCtx: *eng.engine.EngCtx) !void {
...
try self.renderScn.render(
&self.vkCtx,
engCtx,
vkCmdBuff,
&self.modelsCache,
&self.materialsCache,
imageIndex,
);
...
}
...
};Before calling the recordTextures function we check if we have reached the maximum number of textures. If we do not have reached that size, we will add empty slots with a default texture (just one pixel). The reason behind this code is that we are using arrays of textures in the fragment shader. When using those arrays, the size needs to be set upfront and it expects to have valid images (empty slots will not work).
We will need also to update the Engine struct to initialize the zstbi library prior to any texture loading code gets executed. In the create function we will add the following line prior to the Render instance creation:
pub fn Engine(comptime GameLogic: type) type {
...
pub fn create(allocator: std.mem.Allocator, gameLogic: *GameLogic, wndTitle: [:0]const u8) !Engine(GameLogic) {
...
zstbi.init(allocator);
...
}
...
}In the src/eng/modelData.zig we will add to functions to load models and materials from the JSON files:
pub fn loadMaterials(allocator: std.mem.Allocator, path: []const u8) !std.ArrayList(MaterialData) {
log.debug("Loading materials from [{s}]", .{path});
const file = try std.fs.cwd().openFile(path, .{});
defer file.close();
const bytes = try file.readToEndAlloc(allocator, std.math.maxInt(usize));
defer allocator.free(bytes);
const parsed = try std.json.parseFromSlice(std.ArrayListUnmanaged(MaterialData), allocator, bytes, .{});
defer parsed.deinit();
var materials = try std.ArrayList(MaterialData).initCapacity(allocator, parsed.value.items.len);
for (parsed.value.items) |materialData| {
const ownedMaterialData = MaterialData{
.color = materialData.color,
.id = try allocator.dupe(u8, materialData.id),
.texturePath = try allocator.dupe(u8, materialData.texturePath),
};
try materials.append(allocator, ownedMaterialData);
}
return materials;
}
pub fn loadModel(allocator: std.mem.Allocator, path: []const u8) !ModelData {
log.debug("Loading model from [{s}]", .{path});
const file = try std.fs.cwd().openFile(path, .{});
defer file.close();
const bytes = try file.readToEndAlloc(allocator, std.math.maxInt(usize));
defer allocator.free(bytes);
const parsed = try std.json.parseFromSlice(ModelData, allocator, bytes, .{});
defer parsed.deinit();
var modelData = parsed.value;
modelData.id = try allocator.dupe(u8, modelData.id);
modelData.idxFilename = try allocator.dupe(u8, modelData.idxFilename);
modelData.vtxFilename = try allocator.dupe(u8, modelData.vtxFilename);
for (modelData.meshes.items) |*meshData| {
meshData.id = try allocator.dupe(u8, meshData.id);
meshData.materialId = try allocator.dupe(u8, meshData.materialId);
}
return modelData;
}We need to change we load the models in the Game struct. Instead of defining the data in the init function we just use the loadModel and loadMaterials functions to load the data:
const Game = struct {
...
pub fn init(self: *Game, engCtx: *eng.engine.EngCtx, arenaAlloc: std.mem.Allocator) !eng.engine.InitData {
_ = self;
const cubeModel = try eng.mdata.loadModel(arenaAlloc, "res/models/cube/cube.json");
const models = try arenaAlloc.alloc(eng.mdata.ModelData, 1);
models[0] = cubeModel;
const cubeEntity = try eng.ent.Entity.create(engCtx.allocator, ENTITY_ID, cubeModel.id);
cubeEntity.setPos(0.0, 0.0, -4.0);
cubeEntity.update();
try engCtx.scene.addEntity(cubeEntity);
var materials = try std.ArrayList(eng.mdata.MaterialData).initCapacity(arenaAlloc, 1);
const cubeMaterials = try eng.mdata.loadMaterials(arenaAlloc, "res/models/cube/cube-mat.json");
try materials.appendSlice(arenaAlloc, cubeMaterials.items);
return .{ .models = models, .materials = materials };
}
...

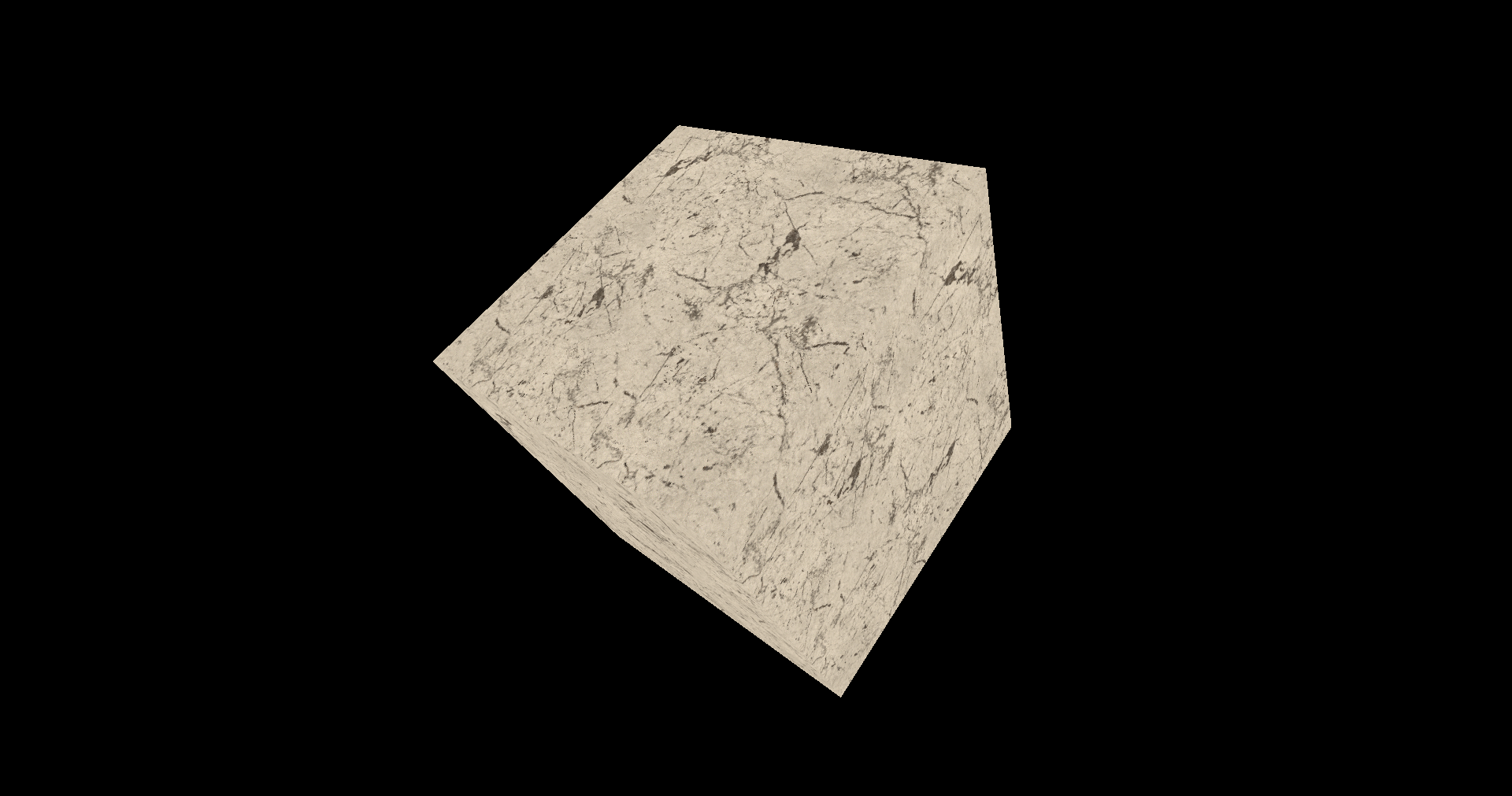

};With all of these changes you will be able to see a nice rotating cube with a texture:
